Aristo Craft
Revolution
Connectors
d. bodnar revised 03-25-13
I have found the following connectors on eBay. They can be used with the Revolution receiver.
7 Pin Auxiliary Interface Cable
This photo shows the seven pin auxiliary
connector that comes with the Revolution receiver (on the left) and the one I
found on eBay on the right. The only difference is the arrangement of the
colors of the wires and their length. The wires on the one from Aristo
Craft are 12" long while the ones from eBay are only 6" long.
I purchased the connectors here: http://www.ebay.com/itm/Micro-JST-1-25-T-1-7-Pin-Connector-plug-w-Wire-x-10-sets-/121077543655?pt=US_Radio_Control_Control_Line&hash=item1c30c8b2e7
If that link is no longer active you can search eBay for: Micro JST 1.25 T-1 7-Pin Connector
3 Pin Trig & Link Cable

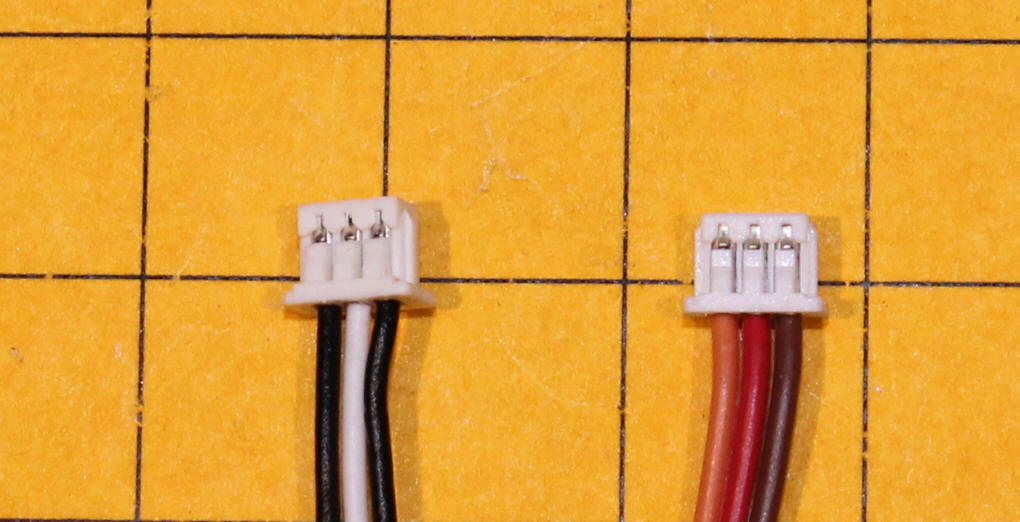

I also found the three pin connectors on
eBay. The one from Aristo is on the left and the one from eBay is on the
right. Again, the colors of the wires are different as are the lengths.
The wires from Aristo are 12" long and those from eBay are 3" long.
I found the three pin connectors here: http://www.ebay.com/itm/150858582613?ssPageName=STRK:MEWNX:IT&_trksid=p3984.m1439.l2648
If that link is no longer active you can search for: servo micro jst servo connector lead 1.25 pitch
2 Pin Speaker Cable
The two pin cable is little less than 4" long and comes with a matching
connector of the opposite gender. The connector shown on the right in this
photo fits perfectly into the Revolution socket.
I purchased the connectors here: http://www.ebay.com/itm/10-x-Micro-JST-1-25-2-Pin-Male-Female-Connector-plug-w-Wire-/171011151690?pt=US_Radio_Control_Control_Line&hash=item27d10f174a
If that link is no longer active you can search eBay for: Micro JST 1.25 2-Pin Connector

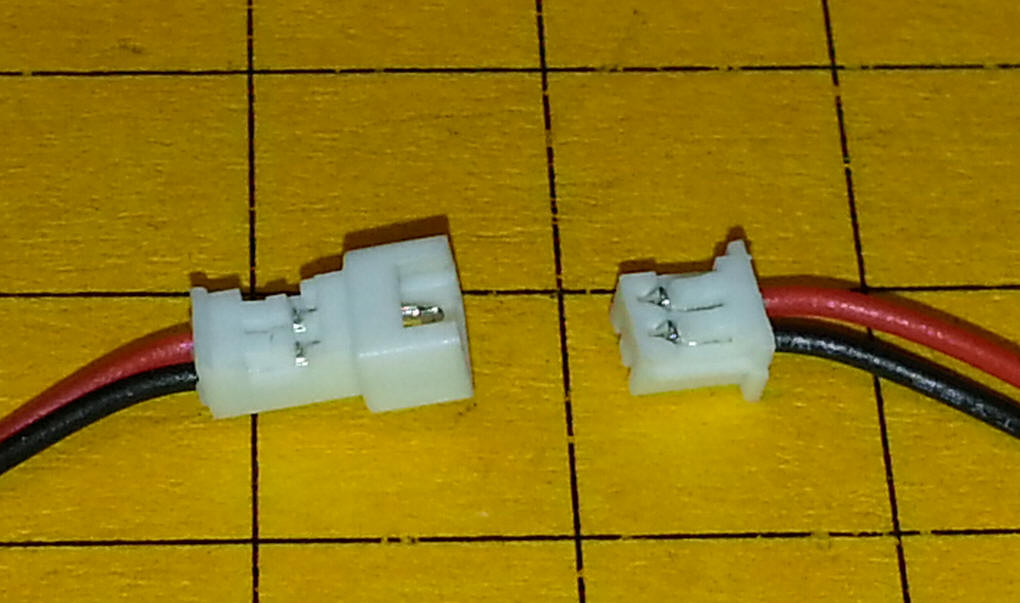

Here is a close-up of the ends of the cables.
