Arduino Projects
Spring / Summer 2014
d. bodnar   revised 08-08-14  5-6-16

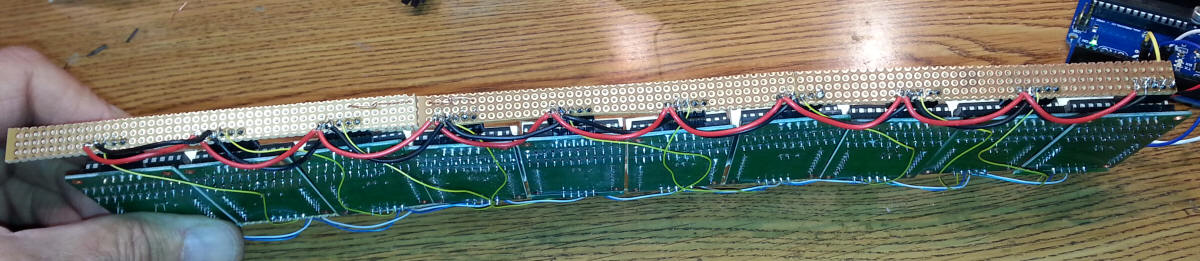

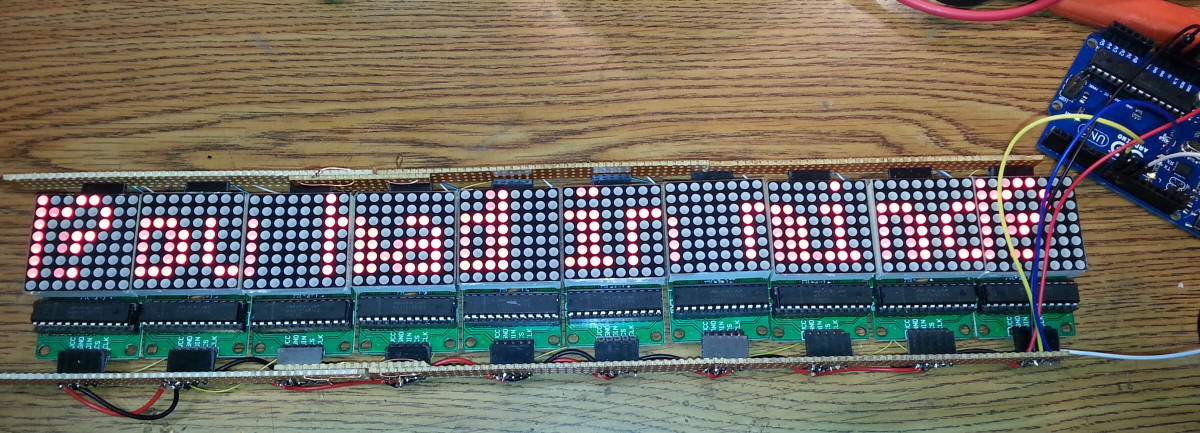

Jump to: Using More than Four Modules - now works with 10!

Jump to: PICAXE to Arduino Serial Communication - 8x8 Matrix on Arduino

I have been experimenting with the 8x8 LED matrix display modules like these from BangGood:  http://www.banggood.com/MAX7219-Dot-Matrix-MCU-LED-Display-Control-Module-Kit-For-Arduino-p-915478.html - they utilize the MAX7219 to control the 64 LEDs.

The heart of the project is an Arduino control program.  I found this description on Instructables but there are other, similar projects on the Internet:  http://www.instructables.com/id/16x8-LED-dot-matrix-with-MAX7219-module/

I got the unit working with three 8x8 modules and have been quite pleased with the ability to program a message on the Arduino and have it scroll by.

My next goal was to take the output from a PIC or PICAXE microcontroller, something that I am very familiar with, and have the data (perhaps room temperature or other information) scroll on the display.
At first the two devices were none too happy about communicating via RS-232 serial - I found the following program for the PICAXE works well.

#picaxe 14m2
#TERMINAL 4800
#FREQ m4
Symbol LED1 = b.2 'pin 11
Symbol LED2 = b.4 'pin 9
Symbol LED3 = b.5 'pin 8
Symbol LED4 = c.0 'pin 7
Symbol LED5 = c.1 'pin 6
Symbol LED6 = c.2 'pin 5
Symbol Trigger2 = pinc.3 'pin 4
Symbol Trigger1 = pinc.4 'pin 3
Symbol Pot1 = pinb.1 'pin 12
Symbol Pot2 = pinb.3 'pin 10

sertxd (13,10,"Arduino Serial Test - d. bodnar 5-04-2014")
top:
b2=b2+1
if b2>25 then
b2=0
pause 2600
endif
SEROUT led6,t9600_8,(" test ",#b2," ")
sertxd ("test ",#b2," ")
pause 2450 'needed to keep from overflowing buffer on Arduino
goto top:


The software for the Arduino is here:



#include <MaxMatrix.h>
#include <avr/pgmspace.h>

PROGMEM prog_uchar CH[] = {
3, 8, B00000000, B00000000, B00000000, B00000000, B00000000, // space
1, 8, B01011111, B00000000, B00000000, B00000000, B00000000, // !
3, 8, B00000011, B00000000, B00000011, B00000000, B00000000, // "
5, 8, B00010100, B00111110, B00010100, B00111110, B00010100, // #
4, 8, B00100100, B01101010, B00101011, B00010010, B00000000, // $
5, 8, B01100011, B00010011, B00001000, B01100100, B01100011, // %
5, 8, B00110110, B01001001, B01010110, B00100000, B01010000, // &
1, 8, B00000011, B00000000, B00000000, B00000000, B00000000, // '
3, 8, B00011100, B00100010, B01000001, B00000000, B00000000, // (
3, 8, B01000001, B00100010, B00011100, B00000000, B00000000, // )
5, 8, B00101000, B00011000, B00001110, B00011000, B00101000, // *
5, 8, B00001000, B00001000, B00111110, B00001000, B00001000, // +
2, 8, B10110000, B01110000, B00000000, B00000000, B00000000, // ,
4, 8, B00001000, B00001000, B00001000, B00001000, B00000000, // -
2, 8, B01100000, B01100000, B00000000, B00000000, B00000000, // .
4, 8, B01100000, B00011000, B00000110, B00000001, B00000000, // /
4, 8, B00111110, B01000001, B01000001, B00111110, B00000000, // 0
3, 8, B01000010, B01111111, B01000000, B00000000, B00000000, // 1
4, 8, B01100010, B01010001, B01001001, B01000110, B00000000, // 2
4, 8, B00100010, B01000001, B01001001, B00110110, B00000000, // 3
4, 8, B00011000, B00010100, B00010010, B01111111, B00000000, // 4
4, 8, B00100111, B01000101, B01000101, B00111001, B00000000, // 5
4, 8, B00111110, B01001001, B01001001, B00110000, B00000000, // 6
4, 8, B01100001, B00010001, B00001001, B00000111, B00000000, // 7
4, 8, B00110110, B01001001, B01001001, B00110110, B00000000, // 8
4, 8, B00000110, B01001001, B01001001, B00111110, B00000000, // 9
2, 8, B01010000, B00000000, B00000000, B00000000, B00000000, // :
2, 8, B10000000, B01010000, B00000000, B00000000, B00000000, // ;
3, 8, B00010000, B00101000, B01000100, B00000000, B00000000, // <
3, 8, B00010100, B00010100, B00010100, B00000000, B00000000, // =
3, 8, B01000100, B00101000, B00010000, B00000000, B00000000, // >
4, 8, B00000010, B01011001, B00001001, B00000110, B00000000, // ?
5, 8, B00111110, B01001001, B01010101, B01011101, B00001110, // @
4, 8, B01111110, B00010001, B00010001, B01111110, B00000000, // A
4, 8, B01111111, B01001001, B01001001, B00110110, B00000000, // B
4, 8, B00111110, B01000001, B01000001, B00100010, B00000000, // C
4, 8, B01111111, B01000001, B01000001, B00111110, B00000000, // D
4, 8, B01111111, B01001001, B01001001, B01000001, B00000000, // E
4, 8, B01111111, B00001001, B00001001, B00000001, B00000000, // F
4, 8, B00111110, B01000001, B01001001, B01111010, B00000000, // G
4, 8, B01111111, B00001000, B00001000, B01111111, B00000000, // H
3, 8, B01000001, B01111111, B01000001, B00000000, B00000000, // I
4, 8, B00110000, B01000000, B01000001, B00111111, B00000000, // J
4, 8, B01111111, B00001000, B00010100, B01100011, B00000000, // K
4, 8, B01111111, B01000000, B01000000, B01000000, B00000000, // L
5, 8, B01111111, B00000010, B00001100, B00000010, B01111111, // M
5, 8, B01111111, B00000100, B00001000, B00010000, B01111111, // N
4, 8, B00111110, B01000001, B01000001, B00111110, B00000000, // O
4, 8, B01111111, B00001001, B00001001, B00000110, B00000000, // P
4, 8, B00111110, B01000001, B01000001, B10111110, B00000000, // Q
4, 8, B01111111, B00001001, B00001001, B01110110, B00000000, // R
4, 8, B01000110, B01001001, B01001001, B00110010, B00000000, // S
5, 8, B00000001, B00000001, B01111111, B00000001, B00000001, // T
4, 8, B00111111, B01000000, B01000000, B00111111, B00000000, // U
5, 8, B00001111, B00110000, B01000000, B00110000, B00001111, // V
5, 8, B00111111, B01000000, B00111000, B01000000, B00111111, // W
5, 8, B01100011, B00010100, B00001000, B00010100, B01100011, // X
5, 8, B00000111, B00001000, B01110000, B00001000, B00000111, // Y
4, 8, B01100001, B01010001, B01001001, B01000111, B00000000, // Z
2, 8, B01111111, B01000001, B00000000, B00000000, B00000000, // [
4, 8, B00000001, B00000110, B00011000, B01100000, B00000000, // \ backslash
2, 8, B01000001, B01111111, B00000000, B00000000, B00000000, // ]
3, 8, B00000010, B00000001, B00000010, B00000000, B00000000, // hat
4, 8, B01000000, B01000000, B01000000, B01000000, B00000000, // _
2, 8, B00000001, B00000010, B00000000, B00000000, B00000000, // `
4, 8, B00100000, B01010100, B01010100, B01111000, B00000000, // a
4, 8, B01111111, B01000100, B01000100, B00111000, B00000000, // b
4, 8, B00111000, B01000100, B01000100, B00101000, B00000000, // c
4, 8, B00111000, B01000100, B01000100, B01111111, B00000000, // d
4, 8, B00111000, B01010100, B01010100, B00011000, B00000000, // e
3, 8, B00000100, B01111110, B00000101, B00000000, B00000000, // f
4, 8, B10011000, B10100100, B10100100, B01111000, B00000000, // g
4, 8, B01111111, B00000100, B00000100, B01111000, B00000000, // h
3, 8, B01000100, B01111101, B01000000, B00000000, B00000000, // i
4, 8, B01000000, B10000000, B10000100, B01111101, B00000000, // j
4, 8, B01111111, B00010000, B00101000, B01000100, B00000000, // k
3, 8, B01000001, B01111111, B01000000, B00000000, B00000000, // l
5, 8, B01111100, B00000100, B01111100, B00000100, B01111000, // m
4, 8, B01111100, B00000100, B00000100, B01111000, B00000000, // n
4, 8, B00111000, B01000100, B01000100, B00111000, B00000000, // o
4, 8, B11111100, B00100100, B00100100, B00011000, B00000000, // p
4, 8, B00011000, B00100100, B00100100, B11111100, B00000000, // q
4, 8, B01111100, B00001000, B00000100, B00000100, B00000000, // r
4, 8, B01001000, B01010100, B01010100, B00100100, B00000000, // s
3, 8, B00000100, B00111111, B01000100, B00000000, B00000000, // t
4, 8, B00111100, B01000000, B01000000, B01111100, B00000000, // u
5, 8, B00011100, B00100000, B01000000, B00100000, B00011100, // v
5, 8, B00111100, B01000000, B00111100, B01000000, B00111100, // w
5, 8, B01000100, B00101000, B00010000, B00101000, B01000100, // x
4, 8, B10011100, B10100000, B10100000, B01111100, B00000000, // y
3, 8, B01100100, B01010100, B01001100, B00000000, B00000000, // z
3, 8, B00001000, B00110110, B01000001, B00000000, B00000000, // {
1, 8, B01111111, B00000000, B00000000, B00000000, B00000000, // |
3, 8, B01000001, B00110110, B00001000, B00000000, B00000000, // }
4, 8, B00001000, B00000100, B00001000, B00000100, B00000000, // ~
};

int data = 8; // DIN pin of MAX7219 module
int load = 9; // CS pin of MAX7219 module
int clock = 10; // CLK pin of MAX7219 module

int maxInUse = 3; //change this variable to set how many MAX7219's you'll use

MaxMatrix m(data, load, clock, maxInUse); // define module

byte buffer[10];

// active sentenses
char string1[] = " SHMRRC 3D Printers -- Dave Bodnar ";
//char string2[] = " I am glad to show you my Arduino scrolling dot Matrix ";
//char string3[] = " using MAX7219 IC ";
//char string4[] = " Visit my blog at: http://arduinobymyself.blogspot.com.br ";
//char string5[] = " There you will find a lot of projects with Arduino. ";
//char string6[] = " Thanks for watching =) ";


// just for tests
char string7[] = " A B C D E F G H I J K L M N O P Q R S T U V W X Y Z ";
char string8[] = " a b c d e f g h i j k l m n o p q r s t u v w x y z ";
char string9[] = " 1 2 3 4 5 6 7 8 9 0 - = ";
char string10[] = " ! @ # $ % & * ( ) _ + ";
char string11[] = " ' , . ; ~ ] [ | < > : ^ } ` { / ? ";

char string12[] = " Hello ! ";


void setup(){
m.init(); // module initialize
m.setIntensity(0); // dot matix intensity 0-15
Serial.begin(4800); // serial communication initialize
}

void loop(){

// this is the code if you want to entering a message via serial console
while (Serial.available() > 0){
byte c = Serial.read();
Serial.println(c, DEC);
printCharWithShift(c, 50);
}
delay(100);
m.shiftLeft(false, true);



// print the active sentences
// printStringWithShift(string1, 100);
// printStringWithShift(string2, 100);
// printStringWithShift(string3, 100);
// printStringWithShift(string4, 100);
// printStringWithShift(string5, 100);
// printStringWithShift(string6, 100);

// print sentences just for tests
// printStringWithShift(string7, 100);
//printStringWithShift(string8, 100);
// printStringWithShift(string9, 100);
// printStringWithShift(string10, 100);
// printStringWithShift(string11, 100);
}

void printCharWithShift(char c, int shift_speed){
if (c < 32) return;
c -= 32;
memcpy_P(buffer, CH + 7*c, 7);
m.writeSprite(32, 0, buffer);
m.setColumn(32 + buffer[0], 0);

for (int i=0; i<buffer[0]+1; i++)
{
delay(shift_speed);
m.shiftLeft(false, false);
}

}

void printStringWithShift(char* s, int shift_speed){
while (*s != 0){
printCharWithShift(*s, shift_speed);
s++;
}
}

void printString(char* s)
{
int col = 0;
while (*s != 0)
{
if (*s < 32) continue;
char c = *s - 32;
memcpy_P(buffer, CH + 7*c, 7);
m.writeSprite(col, 0, buffer);
m.setColumn(col + buffer[0], 0);
col += buffer[0] + 1;
s++;
}
}

The serial output from the PICAXE is at pin 5.  This connects directly to the RX input pin on the Arduino.

  ;

Read & Display Temperature Code
//Test with LED Matrix & Temp Sensor
#include <MaxMatrix.h>
#include <avr/pgmspace.h>
#define REF_PIN 3
void getCurrentTemp( int *sign, int *whole, int *fract);
char temp_string[10];

PROGMEM prog_uchar CH[] = {
3, 8, B00000000, B00000000, B00000000, B00000000, B00000000, // space
1, 8, B01011111, B00000000, B00000000, B00000000, B00000000, // !
3, 8, B00000011, B00000000, B00000011, B00000000, B00000000, // "
5, 8, B00010100, B00111110, B00010100, B00111110, B00010100, // #
4, 8, B00100100, B01101010, B00101011, B00010010, B00000000, // $
5, 8, B01100011, B00010011, B00001000, B01100100, B01100011, // %
5, 8, B00110110, B01001001, B01010110, B00100000, B01010000, // &
1, 8, B00000011, B00000000, B00000000, B00000000, B00000000, // '
3, 8, B00011100, B00100010, B01000001, B00000000, B00000000, // (
3, 8, B01000001, B00100010, B00011100, B00000000, B00000000, // )
5, 8, B00101000, B00011000, B00001110, B00011000, B00101000, // *
5, 8, B00001000, B00001000, B00111110, B00001000, B00001000, // +
2, 8, B10110000, B01110000, B00000000, B00000000, B00000000, // ,
4, 8, B00001000, B00001000, B00001000, B00001000, B00000000, // -
2, 8, B01100000, B01100000, B00000000, B00000000, B00000000, // .
4, 8, B01100000, B00011000, B00000110, B00000001, B00000000, // /
4, 8, B00111110, B01000001, B01000001, B00111110, B00000000, // 0
3, 8, B01000010, B01111111, B01000000, B00000000, B00000000, // 1
4, 8, B01100010, B01010001, B01001001, B01000110, B00000000, // 2
4, 8, B00100010, B01000001, B01001001, B00110110, B00000000, // 3
4, 8, B00011000, B00010100, B00010010, B01111111, B00000000, // 4
4, 8, B00100111, B01000101, B01000101, B00111001, B00000000, // 5
4, 8, B00111110, B01001001, B01001001, B00110000, B00000000, // 6
4, 8, B01100001, B00010001, B00001001, B00000111, B00000000, // 7
4, 8, B00110110, B01001001, B01001001, B00110110, B00000000, // 8
4, 8, B00000110, B01001001, B01001001, B00111110, B00000000, // 9
2, 8, B01010000, B00000000, B00000000, B00000000, B00000000, // :
2, 8, B10000000, B01010000, B00000000, B00000000, B00000000, // ;
3, 8, B00010000, B00101000, B01000100, B00000000, B00000000, // <
3, 8, B00010100, B00010100, B00010100, B00000000, B00000000, // =
3, 8, B01000100, B00101000, B00010000, B00000000, B00000000, // >
4, 8, B00000010, B01011001, B00001001, B00000110, B00000000, // ?
5, 8, B00111110, B01001001, B01010101, B01011101, B00001110, // @
4, 8, B01111110, B00010001, B00010001, B01111110, B00000000, // A
4, 8, B01111111, B01001001, B01001001, B00110110, B00000000, // B
4, 8, B00111110, B01000001, B01000001, B00100010, B00000000, // C
4, 8, B01111111, B01000001, B01000001, B00111110, B00000000, // D
4, 8, B01111111, B01001001, B01001001, B01000001, B00000000, // E
4, 8, B01111111, B00001001, B00001001, B00000001, B00000000, // F
4, 8, B00111110, B01000001, B01001001, B01111010, B00000000, // G
4, 8, B01111111, B00001000, B00001000, B01111111, B00000000, // H
3, 8, B01000001, B01111111, B01000001, B00000000, B00000000, // I
4, 8, B00110000, B01000000, B01000001, B00111111, B00000000, // J
4, 8, B01111111, B00001000, B00010100, B01100011, B00000000, // K
4, 8, B01111111, B01000000, B01000000, B01000000, B00000000, // L
5, 8, B01111111, B00000010, B00001100, B00000010, B01111111, // M
5, 8, B01111111, B00000100, B00001000, B00010000, B01111111, // N
4, 8, B00111110, B01000001, B01000001, B00111110, B00000000, // O
4, 8, B01111111, B00001001, B00001001, B00000110, B00000000, // P
4, 8, B00111110, B01000001, B01000001, B10111110, B00000000, // Q
4, 8, B01111111, B00001001, B00001001, B01110110, B00000000, // R
4, 8, B01000110, B01001001, B01001001, B00110010, B00000000, // S
5, 8, B00000001, B00000001, B01111111, B00000001, B00000001, // T
4, 8, B00111111, B01000000, B01000000, B00111111, B00000000, // U
5, 8, B00001111, B00110000, B01000000, B00110000, B00001111, // V
5, 8, B00111111, B01000000, B00111000, B01000000, B00111111, // W
5, 8, B01100011, B00010100, B00001000, B00010100, B01100011, // X
5, 8, B00000111, B00001000, B01110000, B00001000, B00000111, // Y
4, 8, B01100001, B01010001, B01001001, B01000111, B00000000, // Z
2, 8, B01111111, B01000001, B00000000, B00000000, B00000000, // [
4, 8, B00000001, B00000110, B00011000, B01100000, B00000000, // \ backslash
2, 8, B01000001, B01111111, B00000000, B00000000, B00000000, // ]
3, 8, B00000010, B00000001, B00000010, B00000000, B00000000, // hat
4, 8, B01000000, B01000000, B01000000, B01000000, B00000000, // _
2, 8, B00000001, B00000010, B00000000, B00000000, B00000000, // `
4, 8, B00100000, B01010100, B01010100, B01111000, B00000000, // a
4, 8, B01111111, B01000100, B01000100, B00111000, B00000000, // b
4, 8, B00111000, B01000100, B01000100, B00101000, B00000000, // c
4, 8, B00111000, B01000100, B01000100, B01111111, B00000000, // d
4, 8, B00111000, B01010100, B01010100, B00011000, B00000000, // e
3, 8, B00000100, B01111110, B00000101, B00000000, B00000000, // f
4, 8, B10011000, B10100100, B10100100, B01111000, B00000000, // g
4, 8, B01111111, B00000100, B00000100, B01111000, B00000000, // h
3, 8, B01000100, B01111101, B01000000, B00000000, B00000000, // i
4, 8, B01000000, B10000000, B10000100, B01111101, B00000000, // j
4, 8, B01111111, B00010000, B00101000, B01000100, B00000000, // k
3, 8, B01000001, B01111111, B01000000, B00000000, B00000000, // l
5, 8, B01111100, B00000100, B01111100, B00000100, B01111000, // m
4, 8, B01111100, B00000100, B00000100, B01111000, B00000000, // n
4, 8, B00111000, B01000100, B01000100, B00111000, B00000000, // o
4, 8, B11111100, B00100100, B00100100, B00011000, B00000000, // p
4, 8, B00011000, B00100100, B00100100, B11111100, B00000000, // q
4, 8, B01111100, B00001000, B00000100, B00000100, B00000000, // r
4, 8, B01001000, B01010100, B01010100, B00100100, B00000000, // s
3, 8, B00000100, B00111111, B01000100, B00000000, B00000000, // t
4, 8, B00111100, B01000000, B01000000, B01111100, B00000000, // u
5, 8, B00011100, B00100000, B01000000, B00100000, B00011100, // v
5, 8, B00111100, B01000000, B00111100, B01000000, B00111100, // w
5, 8, B01000100, B00101000, B00010000, B00101000, B01000100, // x
4, 8, B10011100, B10100000, B10100000, B01111100, B00000000, // y
3, 8, B01100100, B01010100, B01001100, B00000000, B00000000, // z
3, 8, B00001000, B00110110, B01000001, B00000000, B00000000, // {
1, 8, B01111111, B00000000, B00000000, B00000000, B00000000, // |
3, 8, B01000001, B00110110, B00001000, B00000000, B00000000, // }
4, 8, B00001000, B00000100, B00001000, B00000100, B00000000, // ~
};

int data = 8; // DIN pin of MAX7219 module
int load = 9; // CS pin of MAX7219 module
int clock = 10; // CLK pin of MAX7219 module

int maxInUse = 3; //change this variable to set how many MAX7219's you'll use
int TestValue = 15227;
MaxMatrix m(data, load, clock, maxInUse); // define module

byte buffer[10];

// active sentenses
char string1[] = " Hello, Bob ... Is this what you had in mind? ";

void setup(){
m.init(); // module initialize
m.setIntensity(5); // dot matix intensity 0-15
// itoa (12, string1,10);
Serial.begin(9600); // serial communication initialize

digitalWrite(REF_PIN, LOW);
pinMode(REF_PIN, INPUT); // sets the digital pin as input (logic 1)
pinMode(15, INPUT);

}

void loop(){
// TestValue=temp_string;
getCurrentTemp(temp_string);
Serial.println(temp_string);
delay(1000);
Serial.print("Degree C ");
//Serial.print("Inches: ");
Serial.println();
//Serial.println(inches);
// TestValue = temp_string;


// TestValue = TestValue + 1;
itoa (TestValue, string1,10);
printStringWithShift(temp_string, 100);
printStringWithShift(" ",100);
}

void printCharWithShift(char c, int shift_speed){
if (c < 32) return;
c -= 32;
memcpy_P(buffer, CH + 7*c, 7);
m.writeSprite(32, 0, buffer);
m.setColumn(32 + buffer[0], 0);

for (int i=0; i<buffer[0]+1; i++)
{
delay(shift_speed);
m.shiftLeft(false, false);
}
}

void printStringWithShift(char* s, int shift_speed){
while (*s != 0){
printCharWithShift(*s, shift_speed);
s++;
}
}

void printString(char* s)
{
int col = 0;
while (*s != 0)
{
if (*s < 32) continue;
char c = *s - 32;
memcpy_P(buffer, CH + 7*c, 7);
m.writeSprite(col, 0, buffer);
m.setColumn(col + buffer[0], 0);
col += buffer[0] + 1;
s++;
}
}

void OneWireReset (int Pin) // reset. Should improve to act as a presence pulse
{
digitalWrite (Pin, LOW);
pinMode (Pin, OUTPUT); // bring low for 500 us
delayMicroseconds (500);
pinMode (Pin, INPUT);
delayMicroseconds (500);
}

void OneWireOutByte (int Pin, byte d) // output byte d (least sig bit first).
{
byte n;

for (n=8; n!=0; n--)
{
if ((d & 0x01) == 1) // test least sig bit
{
digitalWrite (Pin, LOW);
pinMode (Pin, OUTPUT);
delayMicroseconds (5);
pinMode (Pin, INPUT);
delayMicroseconds (60);
}
else
{
digitalWrite (Pin, LOW);
pinMode (Pin, OUTPUT);
delayMicroseconds (60);
pinMode (Pin, INPUT);
}

d = d>>1; // now the next bit is in the least sig bit position.
}
}


byte OneWireInByte (int Pin) // read byte, least sig byte first
{
byte d, n, b;

for (n=0; n<8; n++)
{
digitalWrite (Pin, LOW);
pinMode (Pin, OUTPUT);
delayMicroseconds (5);
pinMode (Pin, INPUT);
delayMicroseconds (5);
b = digitalRead (Pin);
delayMicroseconds (50);
d = (d >> 1) | (b<<7); // shift d to right and insert b in most sig bit position
}
return (d);
}


void getCurrentTemp (char *temp)
{
int HighByte, LowByte, TReading, Tc_100, sign, whole, fract;

OneWireReset (REF_PIN);
OneWireOutByte (REF_PIN, 0xcc);
OneWireOutByte (REF_PIN, 0x44); // perform temperature conversion, strong pullup for one sec

OneWireReset (REF_PIN);
OneWireOutByte (REF_PIN, 0xcc);
OneWireOutByte (REF_PIN, 0xbe);

LowByte = OneWireInByte (REF_PIN);
HighByte = OneWireInByte (REF_PIN);
TReading = (HighByte << 8) + LowByte;
sign = TReading & 0x8000; // test most sig bit
if (sign) // negative
{
TReading = (TReading ^ 0xffff) + 1; // 2's comp
}
Tc_100 = (6 * TReading) + TReading / 4; // multiply by (100 * 0.0625) or 6.25

whole = Tc_100 / 100; // separate off the whole and fractional portions
fract = Tc_100 % 100;

if (sign) {
temp[0] = '-';
} else {
temp[0] = '+';
}

if (whole/100 == 0) {
temp[1] = ' ';
} else {
temp[1] = whole/100+'0';
}

temp[2] = (whole-(whole/100)*100)/10 +'0' ;
temp[3] = whole-(whole/10)*10 +'0';
temp[4] = '.';
temp[5] = fract/10 +'0';
temp[6] = fract-(fract/10)*10 +'0';
temp[7] = '\0';
}
This code does C and F temperature

//Test with LED Matrix & Temp Sensor
#include <MaxMatrix.h>
#include <avr/pgmspace.h>
#define REF_PIN 3
void getCurrentTemp( int *sign, int *whole, int *fract);
char temp_string[10];

PROGMEM prog_uchar CH[] = {
3, 8, B00000000, B00000000, B00000000, B00000000, B00000000, // space
1, 8, B01011111, B00000000, B00000000, B00000000, B00000000, // !
3, 8, B00000011, B00000000, B00000011, B00000000, B00000000, // "
5, 8, B00010100, B00111110, B00010100, B00111110, B00010100, // #
4, 8, B00100100, B01101010, B00101011, B00010010, B00000000, // $
5, 8, B01100011, B00010011, B00001000, B01100100, B01100011, // %
5, 8, B00110110, B01001001, B01010110, B00100000, B01010000, // &
1, 8, B00000011, B00000000, B00000000, B00000000, B00000000, // '
3, 8, B00011100, B00100010, B01000001, B00000000, B00000000, // (
3, 8, B01000001, B00100010, B00011100, B00000000, B00000000, // )
5, 8, B00101000, B00011000, B00001110, B00011000, B00101000, // *
5, 8, B00001000, B00001000, B00111110, B00001000, B00001000, // +
2, 8, B10110000, B01110000, B00000000, B00000000, B00000000, // ,
4, 8, B00001000, B00001000, B00001000, B00001000, B00000000, // -
2, 8, B01100000, B01100000, B00000000, B00000000, B00000000, // .
4, 8, B01100000, B00011000, B00000110, B00000001, B00000000, // /
4, 8, B00111110, B01000001, B01000001, B00111110, B00000000, // 0
3, 8, B01000010, B01111111, B01000000, B00000000, B00000000, // 1
4, 8, B01100010, B01010001, B01001001, B01000110, B00000000, // 2
4, 8, B00100010, B01000001, B01001001, B00110110, B00000000, // 3
4, 8, B00011000, B00010100, B00010010, B01111111, B00000000, // 4
4, 8, B00100111, B01000101, B01000101, B00111001, B00000000, // 5
4, 8, B00111110, B01001001, B01001001, B00110000, B00000000, // 6
4, 8, B01100001, B00010001, B00001001, B00000111, B00000000, // 7
4, 8, B00110110, B01001001, B01001001, B00110110, B00000000, // 8
4, 8, B00000110, B01001001, B01001001, B00111110, B00000000, // 9
2, 8, B01010000, B00000000, B00000000, B00000000, B00000000, // :
2, 8, B10000000, B01010000, B00000000, B00000000, B00000000, // ;
3, 8, B00010000, B00101000, B01000100, B00000000, B00000000, // <
3, 8, B00010100, B00010100, B00010100, B00000000, B00000000, // =
3, 8, B01000100, B00101000, B00010000, B00000000, B00000000, // >
4, 8, B00000010, B01011001, B00001001, B00000110, B00000000, // ?
5, 8, B00111110, B01001001, B01010101, B01011101, B00001110, // @
4, 8, B01111110, B00010001, B00010001, B01111110, B00000000, // A
4, 8, B01111111, B01001001, B01001001, B00110110, B00000000, // B
4, 8, B00111110, B01000001, B01000001, B00100010, B00000000, // C
4, 8, B01111111, B01000001, B01000001, B00111110, B00000000, // D
4, 8, B01111111, B01001001, B01001001, B01000001, B00000000, // E
4, 8, B01111111, B00001001, B00001001, B00000001, B00000000, // F
4, 8, B00111110, B01000001, B01001001, B01111010, B00000000, // G
4, 8, B01111111, B00001000, B00001000, B01111111, B00000000, // H
3, 8, B01000001, B01111111, B01000001, B00000000, B00000000, // I
4, 8, B00110000, B01000000, B01000001, B00111111, B00000000, // J
4, 8, B01111111, B00001000, B00010100, B01100011, B00000000, // K
4, 8, B01111111, B01000000, B01000000, B01000000, B00000000, // L
5, 8, B01111111, B00000010, B00001100, B00000010, B01111111, // M
5, 8, B01111111, B00000100, B00001000, B00010000, B01111111, // N
4, 8, B00111110, B01000001, B01000001, B00111110, B00000000, // O
4, 8, B01111111, B00001001, B00001001, B00000110, B00000000, // P
4, 8, B00111110, B01000001, B01000001, B10111110, B00000000, // Q
4, 8, B01111111, B00001001, B00001001, B01110110, B00000000, // R
4, 8, B01000110, B01001001, B01001001, B00110010, B00000000, // S
5, 8, B00000001, B00000001, B01111111, B00000001, B00000001, // T
4, 8, B00111111, B01000000, B01000000, B00111111, B00000000, // U
5, 8, B00001111, B00110000, B01000000, B00110000, B00001111, // V
5, 8, B00111111, B01000000, B00111000, B01000000, B00111111, // W
5, 8, B01100011, B00010100, B00001000, B00010100, B01100011, // X
5, 8, B00000111, B00001000, B01110000, B00001000, B00000111, // Y
4, 8, B01100001, B01010001, B01001001, B01000111, B00000000, // Z
2, 8, B01111111, B01000001, B00000000, B00000000, B00000000, // [
4, 8, B00000001, B00000110, B00011000, B01100000, B00000000, // \ backslash
2, 8, B01000001, B01111111, B00000000, B00000000, B00000000, // ]
3, 8, B00000010, B00000001, B00000010, B00000000, B00000000, // hat
4, 8, B01000000, B01000000, B01000000, B01000000, B00000000, // _
2, 8, B00000011, B00000011, B00000000, B00000000, B00000000, // ` modified to degree symbol
4, 8, B00100000, B01010100, B01010100, B01111000, B00000000, // a
4, 8, B01111111, B01000100, B01000100, B00111000, B00000000, // b
4, 8, B00111000, B01000100, B01000100, B00101000, B00000000, // c
4, 8, B00111000, B01000100, B01000100, B01111111, B00000000, // d
4, 8, B00111000, B01010100, B01010100, B00011000, B00000000, // e
3, 8, B00000100, B01111110, B00000101, B00000000, B00000000, // f
4, 8, B10011000, B10100100, B10100100, B01111000, B00000000, // g
4, 8, B01111111, B00000100, B00000100, B01111000, B00000000, // h
3, 8, B01000100, B01111101, B01000000, B00000000, B00000000, // i
4, 8, B01000000, B10000000, B10000100, B01111101, B00000000, // j
4, 8, B01111111, B00010000, B00101000, B01000100, B00000000, // k
3, 8, B01000001, B01111111, B01000000, B00000000, B00000000, // l
5, 8, B01111100, B00000100, B01111100, B00000100, B01111000, // m
4, 8, B01111100, B00000100, B00000100, B01111000, B00000000, // n
4, 8, B00111000, B01000100, B01000100, B00111000, B00000000, // o
4, 8, B11111100, B00100100, B00100100, B00011000, B00000000, // p
4, 8, B00011000, B00100100, B00100100, B11111100, B00000000, // q
4, 8, B01111100, B00001000, B00000100, B00000100, B00000000, // r
4, 8, B01001000, B01010100, B01010100, B00100100, B00000000, // s
3, 8, B00000100, B00111111, B01000100, B00000000, B00000000, // t
4, 8, B00111100, B01000000, B01000000, B01111100, B00000000, // u
5, 8, B00011100, B00100000, B01000000, B00100000, B00011100, // v
5, 8, B00111100, B01000000, B00111100, B01000000, B00111100, // w
5, 8, B01000100, B00101000, B00010000, B00101000, B01000100, // x
4, 8, B10011100, B10100000, B10100000, B01111100, B00000000, // y
3, 8, B01100100, B01010100, B01001100, B00000000, B00000000, // z
3, 8, B00001000, B00110110, B01000001, B00000000, B00000000, // {
1, 8, B01111111, B00000000, B00000000, B00000000, B00000000, // |
3, 8, B01000001, B00110110, B00001000, B00000000, B00000000, // }
4, 8, B00001000, B00000100, B00001000, B00000100, B00000000, // ~
};

int data = 8;    // DIN pin of MAX7219 module
int load = 9;    // CS pin of MAX7219 module
int clock = 10;  // CLK pin of MAX7219 module
int Fahrenheit;
int maxInUse = 4;    //change this variable to set how many MAX7219's you'll use
int TestValue = 15227;
MaxMatrix m(data, load, clock, maxInUse); // define module
byte buffer[10];

char string1[] = "";

void setup(){
  m.init(); // module initialize
  m.setIntensity(5); // dot matix intensity 0-15
  Serial.begin(9600); // serial communication initialize
  digitalWrite(REF_PIN, LOW);
  pinMode(REF_PIN, INPUT);      // sets the digital pin as input (logic 1)
  pinMode(15, INPUT);
    Serial.println("V1-2F_C_Working   1-4-15");
//    printStringWithShift("V1-2F_C_Working   1-4-15   ",100);
}

void loop(){
  getCurrentTemp(temp_string);
  Serial.println(temp_string);
  Serial.print("Degree C ");
  Serial.println();
  itoa (Fahrenheit, string1,10);
  printStringWithShift(string1, 100);
  printStringWithShift("`F  ",100);
}

void printCharWithShift(char c, int shift_speed){
  if (c < 32) return;
  c -= 32;
  memcpy_P(buffer, CH + 7*c, 7);
  m.writeSprite(32, 0, buffer);
  m.setColumn(32 + buffer[0], 0);
  for (int i=0; i<buffer[0]+1; i++)
  {
    delay(shift_speed);
    m.shiftLeft(false, false);
  }
}

void printStringWithShift(char* s, int shift_speed){
  while (*s != 0){
    printCharWithShift(*s, shift_speed);
    s++;
  }
}

void OneWireReset (int Pin) // reset.  Should improve to act as a presence pulse
{
  digitalWrite (Pin, LOW);
  pinMode (Pin, OUTPUT);        // bring low for 500 us
  delayMicroseconds (500);
  pinMode (Pin, INPUT);
  delayMicroseconds (500);
}

void OneWireOutByte (int Pin, byte d) // output byte d (least sig bit first).
{
  byte n;

  for (n=8; n!=0; n--)
  {
    if ((d & 0x01) == 1)  // test least sig bit
    {
      digitalWrite (Pin, LOW);
      pinMode (Pin, OUTPUT);
      delayMicroseconds (5);
      pinMode (Pin, INPUT);
      delayMicroseconds (60);
    }
    else
    {
      digitalWrite (Pin, LOW);
      pinMode (Pin, OUTPUT);
      delayMicroseconds (60);
      pinMode (Pin, INPUT);
    }
    d = d>>1; // now the next bit is in the least sig bit position.
  }
}


byte OneWireInByte (int Pin) // read byte, least sig byte first
{
  byte d, n, b;
  for (n=0; n<8; n++)
  {
    digitalWrite (Pin, LOW);
    pinMode (Pin, OUTPUT);
    delayMicroseconds (5);
    pinMode (Pin, INPUT);
    delayMicroseconds (5);
    b = digitalRead (Pin);
    delayMicroseconds (50);
    d = (d >> 1) | (b<<7); // shift d to right and insert b in most sig bit position
  }
  return (d);
}

void getCurrentTemp (char *temp)
{
  int HighByte, LowByte, TReading, Tc_100, sign, whole, fract;

  OneWireReset (REF_PIN);
  OneWireOutByte (REF_PIN, 0xcc);
  OneWireOutByte (REF_PIN, 0x44); // perform temperature conversion, strong pullup for one sec

  OneWireReset (REF_PIN);
  OneWireOutByte (REF_PIN, 0xcc);
  OneWireOutByte (REF_PIN, 0xbe);

  LowByte = OneWireInByte (REF_PIN);
  HighByte = OneWireInByte (REF_PIN);
  TReading = (HighByte << 8) + LowByte;
  sign = TReading & 0x8000;  // test most sig bit
  if (sign) // negative
  {
    TReading = (TReading ^ 0xffff) + 1; // 2's comp
  }
  Tc_100 = (6 * TReading) + TReading / 4;    // multiply by (100 * 0.0625) or 6.25

  whole = Tc_100 / 100;  // separate off the whole and fractional portions
  fract = Tc_100 % 100;

  if (sign) {
    temp[0] = '-';
  } else {
    temp[0] = '+';
  }

  if (whole/100 == 0) {
    temp[1] = ' ';
  } else {
    temp[1] = whole/100+'0';
  }

  temp[2] = (whole-(whole/100)*100)/10 +'0' ;
  temp[3] = whole-(whole/10)*10 +'0';
  temp[4] = '.';
  temp[5] = fract/10 +'0';
  temp[6] = fract-(fract/10)*10 +'0';
  temp[7] = '\0';
    itoa (whole, string1,10);
    printStringWithShift(string1, 100);
    printStringWithShift(".",100);
      itoa (fract, string1,10);
    printStringWithShift(string1, 100);

  printStringWithShift("`C  ",100);
  // convert to Fahrenheit
  whole = whole * 9 / 5 + 32;
   Fahrenheit = whole;
    Serial.print(whole);
    //Serial.println();
    Serial.println("`F");
    Serial.println();
}



Using More than Four Modules
The software and hardware highlighted in the
Instructables article are excellent but only work reliably with four modules.  With a fifth or sixth module added the output can change in unusual ways!  The line that identifies the number of modules is:

int maxInUse = 4; //change this variable to set how many MAX7219's you'll use

There are notes on the Instructables page to change a number of values from 32 to 64.  Unfortunately this change doesn't work properly.  The code that needs to be changed is shown here:

void printCharWithShift(char c, int shift_speed){
if (c < 32) return;
c -= 32;
memcpy_P(buffer, CH + 7*c, 7);
m.writeSprite(32, 0, buffer);
m.setColumn(32 + buffer[0], 0);

for (int i=0; i<buffer[0]+1; i++)
{
delay(shift_speed);
m.shiftLeft(false, false);
}
}

The suggested change is shown here:

void printCharWithShift(char c, int shift_speed){
if (c < 64) return;
c -= 64;
memcpy_P(buffer, CH + 7*c, 7);
m.writeSprite(64, 0, buffer);
m.setColumn(64 + buffer[0], 0);

for (int i=0; i<buffer[0]+1; i++)
{
delay(shift_speed);
m.shiftLeft(false, false);
}
}

The first two "32"'s should NOT be changed. They have to do with the ASCII values of the characters, not their being displayed.  If you do change the second set of "32"'s you will see your lower case letters displayed in upper case.  Other errors will show up as well.

To work with up to 8 modules change the 2nd two "32"'s to 64.

void printCharWithShift(char c, int shift_speed){
if (c < 32) return;
c -= 32;
memcpy_P(buffer, CH + 7*c, 7);
m.writeSprite(64, 0, buffer);
m.setColumn(64 + buffer[0], 0);

for (int i=0; i<buffer[0]+1; i++)
{
delay(shift_speed);
m.shiftLeft(false, false);
}
}

Use With 9 Modules
I continued to add modules by changing the "MaxInUse" variable.  Again, I ran into errors on the display.  I gave some thought to the value of 64 that was used to get to 8 modules and guessed that this value might need to be 8 times the number of modules so I changed it from 64 to 72.  Bingo!  The 9 module display worked like a charm.

Use With 10 Modules
Unfortunately getting the 10th module to work was not so simple.  I tried changing the 72 to 80 (and a number of other values!) with no success.  If anyone comes up with a solution please let me know and I'll post it here (email:  dave@davebodnar.com )

10 Module Update
I heard from Marcelo, the fellow who wrote the Instructable, and he suggested some modifications to the library files.  His email is below

Hi Dave
I never got more than 8 modules.

This code it is correct and works up to 9 modules.

void printCharWithShift(char c, int shift_speed){
if (c < 32) return;
c -= 32;
memcpy_P(buffer, CH + 7*c, 7);
m.writeSprite(72, 0, buffer);
m.setColumn(72 + buffer[0], 0);

for (int i=0; i<buffer[0]+1; i++)
{
delay(shift_speed);
m.shiftLeft(false, false);
}
}

Try to modify this line "byte buffer[80];" on MaxMatrix.h file
Put a value grater than 80 like e.g. 100.
and on MaxMatrix.cpp file, modify any 80 value by 100


​​
And let me know the results.



The results are in and the changes allowed me to get 10 modules working!  I haven't tested beyond that but expect that more will work.

The two modified files can be downloaded here - be sure to back up your original files before changing to these new ones!

Arduino/LED_Matrix/MaxMatrix.cpp

Arduino/LED_Matrix/MaxMatrix.h

Just use them in place of the files in the library location on your computer.

Note that I also changed two items in the section below to 80.

void printCharWithShift(char c, int shift_speed){
if (c < 32) return;
c -= 32;
memcpy_P(buffer, CH + 7*c, 7);
m.writeSprite(80, 0, buffer);
m.setColumn(80 + buffer[0], 0);

for (int i=0; i<buffer[0]+1; i++)
{
delay(shift_speed);
m.shiftLeft(false, false);
}
}

Photos of the Modules:
Here are the 10 modules all wired together.  The +5 and ground connections are at the bottom of the boards and the others are at the top.

Here is the bottom of the boards.

The back shows the yellow Data In / Data Out wiring from one module to the next.

This photo shows the heavier wire that was used for the power and ground leads.

Another YouTube Demo Video with a Case!





Modified Code - Added Functions!
The code here adds static pauses followed by clearing the screen and flashing of the display.
#include <MaxMatrix.h>
#include <avr/pgmspace.h>

PROGMEM prog_uchar CH[] = {
3, 8, B00000000, B00000000, B00000000, B00000000, B00000000, // space
1, 8, B01011111, B00000000, B00000000, B00000000, B00000000, // !
3, 8, B00000011, B00000000, B00000011, B00000000, B00000000, // "
5, 8, B00010100, B00111110, B00010100, B00111110, B00010100, // #
4, 8, B00100100, B01101010, B00101011, B00010010, B00000000, // $
5, 8, B01100011, B00010011, B00001000, B01100100, B01100011, // %
5, 8, B00110110, B01001001, B01010110, B00100000, B01010000, // &
1, 8, B00000011, B00000000, B00000000, B00000000, B00000000, // '
3, 8, B00011100, B00100010, B01000001, B00000000, B00000000, // (
3, 8, B01000001, B00100010, B00011100, B00000000, B00000000, // )
5, 8, B00101000, B00011000, B00001110, B00011000, B00101000, // *
5, 8, B00001000, B00001000, B00111110, B00001000, B00001000, // +
2, 8, B10110000, B01110000, B00000000, B00000000, B00000000, // ,
4, 8, B00001000, B00001000, B00001000, B00001000, B00000000, // -
2, 8, B01100000, B01100000, B00000000, B00000000, B00000000, // .
4, 8, B01100000, B00011000, B00000110, B00000001, B00000000, // /
4, 8, B00111110, B01000001, B01000001, B00111110, B00000000, // 0
3, 8, B01000010, B01111111, B01000000, B00000000, B00000000, // 1
4, 8, B01100010, B01010001, B01001001, B01000110, B00000000, // 2
4, 8, B00100010, B01000001, B01001001, B00110110, B00000000, // 3
4, 8, B00011000, B00010100, B00010010, B01111111, B00000000, // 4
4, 8, B00100111, B01000101, B01000101, B00111001, B00000000, // 5
4, 8, B00111110, B01001001, B01001001, B00110000, B00000000, // 6
4, 8, B01100001, B00010001, B00001001, B00000111, B00000000, // 7
4, 8, B00110110, B01001001, B01001001, B00110110, B00000000, // 8
4, 8, B00000110, B01001001, B01001001, B00111110, B00000000, // 9
2, 8, B01010000, B00000000, B00000000, B00000000, B00000000, // :
2, 8, B10000000, B01010000, B00000000, B00000000, B00000000, // ;
3, 8, B00010000, B00101000, B01000100, B00000000, B00000000, // <
3, 8, B00010100, B00010100, B00010100, B00000000, B00000000, // =
3, 8, B01000100, B00101000, B00010000, B00000000, B00000000, // >
4, 8, B00000010, B01011001, B00001001, B00000110, B00000000, // ?
5, 8, B00111110, B01001001, B01010101, B01011101, B00001110, // @
4, 8, B01111110, B00010001, B00010001, B01111110, B00000000, // A
4, 8, B01111111, B01001001, B01001001, B00110110, B00000000, // B
4, 8, B00111110, B01000001, B01000001, B00100010, B00000000, // C
4, 8, B01111111, B01000001, B01000001, B00111110, B00000000, // D
4, 8, B01111111, B01001001, B01001001, B01000001, B00000000, // E
4, 8, B01111111, B00001001, B00001001, B00000001, B00000000, // F
4, 8, B00111110, B01000001, B01001001, B01111010, B00000000, // G
4, 8, B01111111, B00001000, B00001000, B01111111, B00000000, // H
3, 8, B01000001, B01111111, B01000001, B00000000, B00000000, // I
4, 8, B00110000, B01000000, B01000001, B00111111, B00000000, // J
4, 8, B01111111, B00001000, B00010100, B01100011, B00000000, // K
4, 8, B01111111, B01000000, B01000000, B01000000, B00000000, // L
5, 8, B01111111, B00000010, B00001100, B00000010, B01111111, // M
5, 8, B01111111, B00000100, B00001000, B00010000, B01111111, // N
4, 8, B00111110, B01000001, B01000001, B00111110, B00000000, // O
4, 8, B01111111, B00001001, B00001001, B00000110, B00000000, // P
4, 8, B00111110, B01000001, B01000001, B10111110, B00000000, // Q
4, 8, B01111111, B00001001, B00001001, B01110110, B00000000, // R
4, 8, B01000110, B01001001, B01001001, B00110010, B00000000, // S
5, 8, B00000001, B00000001, B01111111, B00000001, B00000001, // T
4, 8, B00111111, B01000000, B01000000, B00111111, B00000000, // U
5, 8, B00001111, B00110000, B01000000, B00110000, B00001111, // V
5, 8, B00111111, B01000000, B00111000, B01000000, B00111111, // W
5, 8, B01100011, B00010100, B00001000, B00010100, B01100011, // X
5, 8, B00000111, B00001000, B01110000, B00001000, B00000111, // Y
4, 8, B01100001, B01010001, B01001001, B01000111, B00000000, // Z
2, 8, B01111111, B01000001, B00000000, B00000000, B00000000, // [
4, 8, B00000001, B00000110, B00011000, B01100000, B00000000, // \ backslash
2, 8, B01000001, B01111111, B00000000, B00000000, B00000000, // ]
3, 8, B00000010, B00000001, B00000010, B00000000, B00000000, // hat
4, 8, B01000000, B01000000, B01000000, B01000000, B00000000, // _
2, 8, B00000001, B00000010, B00000000, B00000000, B00000000, // `
4, 8, B00100000, B01010100, B01010100, B01111000, B00000000, // a
4, 8, B01111111, B01000100, B01000100, B00111000, B00000000, // b
4, 8, B00111000, B01000100, B01000100, B00101000, B00000000, // c
4, 8, B00111000, B01000100, B01000100, B01111111, B00000000, // d
4, 8, B00111000, B01010100, B01010100, B00011000, B00000000, // e
3, 8, B00000100, B01111110, B00000101, B00000000, B00000000, // f
4, 8, B10011000, B10100100, B10100100, B01111000, B00000000, // g
4, 8, B01111111, B00000100, B00000100, B01111000, B00000000, // h
3, 8, B01000100, B01111101, B01000000, B00000000, B00000000, // i
4, 8, B01000000, B10000000, B10000100, B01111101, B00000000, // j
4, 8, B01111111, B00010000, B00101000, B01000100, B00000000, // k
3, 8, B01000001, B01111111, B01000000, B00000000, B00000000, // l
5, 8, B01111100, B00000100, B01111100, B00000100, B01111000, // m
4, 8, B01111100, B00000100, B00000100, B01111000, B00000000, // n
4, 8, B00111000, B01000100, B01000100, B00111000, B00000000, // o
4, 8, B11111100, B00100100, B00100100, B00011000, B00000000, // p
4, 8, B00011000, B00100100, B00100100, B11111100, B00000000, // q
4, 8, B01111100, B00001000, B00000100, B00000100, B00000000, // r
4, 8, B01001000, B01010100, B01010100, B00100100, B00000000, // s
3, 8, B00000100, B00111111, B01000100, B00000000, B00000000, // t
4, 8, B00111100, B01000000, B01000000, B01111100, B00000000, // u
5, 8, B00011100, B00100000, B01000000, B00100000, B00011100, // v
5, 8, B00111100, B01000000, B00111100, B01000000, B00111100, // w
5, 8, B01000100, B00101000, B00010000, B00101000, B01000100, // x
4, 8, B10011100, B10100000, B10100000, B01111100, B00000000, // y
3, 8, B01100100, B01010100, B01001100, B00000000, B00000000, // z
3, 8, B00001000, B00110110, B01000001, B00000000, B00000000, // {
1, 8, B01111111, B00000000, B00000000, B00000000, B00000000, // |
3, 8, B01000001, B00110110, B00001000, B00000000, B00000000, // }
4, 8, B00001000, B00000100, B00001000, B00000100, B00000000, // ~
};

int data = 8;    // DIN pin of MAX7219 module
int load = 9;    // CS pin of MAX7219 module
int clock = 10;  // CLK pin of MAX7219 module

int maxInUse = 9;    //change this variable to set how many MAX7219's you'll use

MaxMatrix m(data, load, clock, maxInUse); // define module

byte buffer[10];  //memory to store current items to be printed

// active sentenses
char string1[] = " PGRS       ";
char string2[] = "Pittsburgh Garden Railway Society        ";
char string3[] = " Welcome   ";
char string4[] = "to our layout!";
char string5[] = " Be sure to check out ";
char string6[] = "the raffle.   ";

void setup(){
  m.init(); // module initialize
  m.setIntensity(10); // dot matix intensity 0-15
  Serial.begin(9600); // serial communication initialize
}

void loop(){
 // print the active sentences
  printStringWithShift(string1, 55, 5 );   //smaller number = higher speed
  pauseNclear(3000);  // pause display for 3 seconds
  printStringWithShift(string2, 50, 0);  // final digit is number of times to flash
  printStringWithShift(string3, 20, 3);
  pauseNclear(1000);  // pause for 1 second
  printStringWithShift(string4, 100, 0);
  pauseNclear(1000);
  printStringWithShift(string5, 100, 0);
  pauseNclear(1000);
  printStringWithShift(string6, 20, 10);
  pauseNclear(2000);
}

void printStringWithShift(char* s, int shift_speed, int flash){  // if flash > 0 then it flashes after printing
  while (*s != 0){
    printCharWithShift(*s, shift_speed);
    s++;
 }
    Serial.println("Flash = ");//these serial.println lines are for debugging
    Serial.println(flash);
  if (flash != 0)
  {
      Serial.println("past return");
      for (int x=0; x <flash; x++)  // careful not to put a ; after this!!!!
    {
       m.setIntensity(0); // dot matix intensity 0-15
       delay (500);
       m.setIntensity(15); // dot matix intensity 0-15
       delay (500);
       m.setIntensity(10);
    }
  }
}

void printCharWithShift(char c, int shift_speed){
  if (c < 32) return;   //if ascii is < 32 it is a non printible control - 32=space
  c -= 32;  // subtrace 32 from c (same as c=c-32)
  memcpy_P(buffer, CH + 7*c, 7);  //put characters in memory
  m.writeSprite(72, 0, buffer);  //calls write to column 72, row 0, buffer holding sprite design
  m.setColumn(72 + buffer[0], 0); //set column 82 + buffer to first (0th) value
  for (int i=0; i<buffer[0]+1; i++)  // for i=0 to i< buffer+1 stepping up by 1 each time through
  {
    delay(shift_speed); //pause some number of milliseconds
    m.shiftLeft(false, false);   //m.shiftLeft(rotate = false, fill_zero = true);
  }
}

 void pauseNclear(int howlong)   // function to pause, then clear the display
 {
   delay(howlong);
  m.init();
 }



16F88 program to test output to Arduino  - the following works!

'Test of serial output to Arduino

Include "modedefs.bas"
OSCCON = %01100111 'MUST BE USED to set clock speed =$67
cmcon=7 'allows you to use pins as digital rather than analog
ansel=0 'allows you to use pins as digital rather than analog

DEFINE OSC 8
OSCCON = $70
pause 200 'needed to allow for easy reprogramming with ICSP - see notes


Serial_out var PORTA.2 'A2=pin 1 , A7=pin 16 A6=pin15
sw1 var portb.1 'pin 2 on chip
sw2 var portb.2 'pin 3 on chip

TestTop0:
serout serial_out,n9600,["5-08-14 Serial to Arduino Test",10,13 ]
TestTop:
serout portA.2,n9600,[" Working! A2 ",10,13 ]
serout portA.7,t9600,["AABBbbccddee A7 ",10,13 ]
serout portA.6,n9600,[" Working! A6 ",10,13 ]
pause 4000

goto TestTop

Arduino Routine to get data from PIC 16F88

NOTE - Must remove cable to RX on Arduino to program it!
void setup(){

  Serial.begin(9600); // serial communication initialize
}

void loop(){
  while (Serial.available() > 0){
    char c = Serial.read();
    Serial.println(c);

  }
}



Code to use IR sensor and show count of passages

// d. bodnar 6-7-14
// uses orange IR sensor to detect event and show count on 8x8 LED matrix
// prints well on 3 modules up to 5 digits
#include <MaxMatrix.h>
#include <avr/pgmspace.h>

PROGMEM prog_uchar CH[] = {
3, 8, B00000000, B00000000, B00000000, B00000000, B00000000, // space
1, 8, B01011111, B00000000, B00000000, B00000000, B00000000, // !
3, 8, B00000011, B00000000, B00000011, B00000000, B00000000, // "
5, 8, B00010100, B00111110, B00010100, B00111110, B00010100, // #
4, 8, B00100100, B01101010, B00101011, B00010010, B00000000, // $
5, 8, B01100011, B00010011, B00001000, B01100100, B01100011, // %
5, 8, B00110110, B01001001, B01010110, B00100000, B01010000, // &
1, 8, B00000011, B00000000, B00000000, B00000000, B00000000, // '
3, 8, B00011100, B00100010, B01000001, B00000000, B00000000, // (
3, 8, B01000001, B00100010, B00011100, B00000000, B00000000, // )
5, 8, B00101000, B00011000, B00001110, B00011000, B00101000, // *
5, 8, B00001000, B00001000, B00111110, B00001000, B00001000, // +
2, 8, B10110000, B01110000, B00000000, B00000000, B00000000, // ,
4, 8, B00001000, B00001000, B00001000, B00001000, B00000000, // -
2, 8, B01100000, B01100000, B00000000, B00000000, B00000000, // .
4, 8, B01100000, B00011000, B00000110, B00000001, B00000000, // /
4, 8, B00111110, B01000001, B01000001, B00111110, B00000000, // 0
3, 8, B01000010, B01111111, B01000000, B00000000, B00000000, // 1
4, 8, B01100010, B01010001, B01001001, B01000110, B00000000, // 2
4, 8, B00100010, B01000001, B01001001, B00110110, B00000000, // 3
4, 8, B00011000, B00010100, B00010010, B01111111, B00000000, // 4
4, 8, B00100111, B01000101, B01000101, B00111001, B00000000, // 5
4, 8, B00111110, B01001001, B01001001, B00110000, B00000000, // 6
4, 8, B01100001, B00010001, B00001001, B00000111, B00000000, // 7
4, 8, B00110110, B01001001, B01001001, B00110110, B00000000, // 8
4, 8, B00000110, B01001001, B01001001, B00111110, B00000000, // 9
2, 8, B01010000, B00000000, B00000000, B00000000, B00000000, // :
2, 8, B10000000, B01010000, B00000000, B00000000, B00000000, // ;
3, 8, B00010000, B00101000, B01000100, B00000000, B00000000, // <
3, 8, B00010100, B00010100, B00010100, B00000000, B00000000, // =
3, 8, B01000100, B00101000, B00010000, B00000000, B00000000, // >
4, 8, B00000010, B01011001, B00001001, B00000110, B00000000, // ?
5, 8, B00111110, B01001001, B01010101, B01011101, B00001110, // @
4, 8, B01111110, B00010001, B00010001, B01111110, B00000000, // A
4, 8, B01111111, B01001001, B01001001, B00110110, B00000000, // B
4, 8, B00111110, B01000001, B01000001, B00100010, B00000000, // C
4, 8, B01111111, B01000001, B01000001, B00111110, B00000000, // D
4, 8, B01111111, B01001001, B01001001, B01000001, B00000000, // E
4, 8, B01111111, B00001001, B00001001, B00000001, B00000000, // F
4, 8, B00111110, B01000001, B01001001, B01111010, B00000000, // G
4, 8, B01111111, B00001000, B00001000, B01111111, B00000000, // H
3, 8, B01000001, B01111111, B01000001, B00000000, B00000000, // I
4, 8, B00110000, B01000000, B01000001, B00111111, B00000000, // J
4, 8, B01111111, B00001000, B00010100, B01100011, B00000000, // K
4, 8, B01111111, B01000000, B01000000, B01000000, B00000000, // L
5, 8, B01111111, B00000010, B00001100, B00000010, B01111111, // M
5, 8, B01111111, B00000100, B00001000, B00010000, B01111111, // N
4, 8, B00111110, B01000001, B01000001, B00111110, B00000000, // O
4, 8, B01111111, B00001001, B00001001, B00000110, B00000000, // P
4, 8, B00111110, B01000001, B01000001, B10111110, B00000000, // Q
4, 8, B01111111, B00001001, B00001001, B01110110, B00000000, // R
4, 8, B01000110, B01001001, B01001001, B00110010, B00000000, // S
5, 8, B00000001, B00000001, B01111111, B00000001, B00000001, // T
4, 8, B00111111, B01000000, B01000000, B00111111, B00000000, // U
5, 8, B00001111, B00110000, B01000000, B00110000, B00001111, // V
5, 8, B00111111, B01000000, B00111000, B01000000, B00111111, // W
5, 8, B01100011, B00010100, B00001000, B00010100, B01100011, // X
5, 8, B00000111, B00001000, B01110000, B00001000, B00000111, // Y
4, 8, B01100001, B01010001, B01001001, B01000111, B00000000, // Z
2, 8, B01111111, B01000001, B00000000, B00000000, B00000000, // [
4, 8, B00000001, B00000110, B00011000, B01100000, B00000000, // \ backslash
2, 8, B01000001, B01111111, B00000000, B00000000, B00000000, // ]
3, 8, B00000010, B00000001, B00000010, B00000000, B00000000, // hat
4, 8, B01000000, B01000000, B01000000, B01000000, B00000000, // _
2, 8, B00000001, B00000010, B00000000, B00000000, B00000000, // `
4, 8, B00100000, B01010100, B01010100, B01111000, B00000000, // a
4, 8, B01111111, B01000100, B01000100, B00111000, B00000000, // b
4, 8, B00111000, B01000100, B01000100, B00101000, B00000000, // c
4, 8, B00111000, B01000100, B01000100, B01111111, B00000000, // d
4, 8, B00111000, B01010100, B01010100, B00011000, B00000000, // e
3, 8, B00000100, B01111110, B00000101, B00000000, B00000000, // f
4, 8, B10011000, B10100100, B10100100, B01111000, B00000000, // g
4, 8, B01111111, B00000100, B00000100, B01111000, B00000000, // h
3, 8, B01000100, B01111101, B01000000, B00000000, B00000000, // i
4, 8, B01000000, B10000000, B10000100, B01111101, B00000000, // j
4, 8, B01111111, B00010000, B00101000, B01000100, B00000000, // k
3, 8, B01000001, B01111111, B01000000, B00000000, B00000000, // l
5, 8, B01111100, B00000100, B01111100, B00000100, B01111000, // m
4, 8, B01111100, B00000100, B00000100, B01111000, B00000000, // n
4, 8, B00111000, B01000100, B01000100, B00111000, B00000000, // o
4, 8, B11111100, B00100100, B00100100, B00011000, B00000000, // p
4, 8, B00011000, B00100100, B00100100, B11111100, B00000000, // q
4, 8, B01111100, B00001000, B00000100, B00000100, B00000000, // r
4, 8, B01001000, B01010100, B01010100, B00100100, B00000000, // s
3, 8, B00000100, B00111111, B01000100, B00000000, B00000000, // t
4, 8, B00111100, B01000000, B01000000, B01111100, B00000000, // u
5, 8, B00011100, B00100000, B01000000, B00100000, B00011100, // v
5, 8, B00111100, B01000000, B00111100, B01000000, B00111100, // w
5, 8, B01000100, B00101000, B00010000, B00101000, B01000100, // x
4, 8, B10011100, B10100000, B10100000, B01111100, B00000000, // y
3, 8, B01100100, B01010100, B01001100, B00000000, B00000000, // z
3, 8, B00001000, B00110110, B01000001, B00000000, B00000000, // {
1, 8, B01111111, B00000000, B00000000, B00000000, B00000000, // |
3, 8, B01000001, B00110110, B00001000, B00000000, B00000000, // }
4, 8, B00001000, B00000100, B00001000, B00000100, B00000000, // ~
};

int data = 8; // DIN pin of MAX7219 module
int load = 9; // CS pin of MAX7219 module
int clock = 10; // CLK pin of MAX7219 module

int maxInUse = 3; //change this variable to set how many MAX7219's you'll use
int TestValue =-1; // max of 32767 for integers
int TestValueOld=-1;
MaxMatrix m(data, load, clock, maxInUse); // define module
const int buttonPin = 2; // the number of the IR sensor pin
byte buffer[10];
int buttonState; // the current reading from the input pin
int lastButtonState = LOW; // the previous reading from the input pin
char string1[] = " dummy string ";

void setup(){
pinMode(buttonPin, INPUT);
m.init(); // module initialize
m.setIntensity(5); // dot matix intensity 0-15
Serial.begin(9600); // serial communication initialize
}

void loop(){
int reading = digitalRead(buttonPin);
if (reading != lastButtonState) {
if (reading != buttonState) {
TestValue = TestValue + 1;
}
lastButtonState = reading;
}
if (TestValue != TestValueOld) {

itoa (TestValue, string1,10);
printStringWithShift(string1, 100);
if (TestValue <10){
printStringWithShift(" ",100); // 4 spaces for single digits
}
if (TestValue >9 and TestValue < 100){
printStringWithShift(" ",100); // 4 spaces for single digits
}
if (TestValue >99 and TestValue < 1000){
printStringWithShift(" ",100); // 4 spaces for single digits
}
if (TestValue >999){
printStringWithShift(" ",100); // 4 spaces for single digits
}
Serial.print("LBS = " );
Serial.print(lastButtonState);
Serial.print("\t TV = ");
Serial.print(TestValue);
Serial.print("\t RDG = ");
Serial.println(reading);
TestValueOld=TestValue;
}
}

void printCharWithShift(char c, int shift_speed){
if (c < 32) return;
c -= 32;
memcpy_P(buffer, CH + 7*c, 7);
m.writeSprite(32, 0, buffer);
m.setColumn(32 + buffer[0], 0);

for (int i=0; i<buffer[0]+1; i++)
{
delay(shift_speed);
m.shiftLeft(false, false);
}
}

void printStringWithShift(char* s, int shift_speed){
while (*s != 0){
printCharWithShift(*s, shift_speed);
s++;
}
}

void printString(char* s)
{
int col = 0;
while (*s != 0)
{
if (*s < 32) continue;
char c = *s - 32;
memcpy_P(buffer, CH + 7*c, 7);
m.writeSprite(col, 0, buffer);
m.setColumn(col + buffer[0], 0);
col += buffer[0] + 1;
s++;
}
}

Sending Serial Data from PICAXE to Arduino and Displaying on 8x8 Matrix

Connect PICAXE output pin (pin c.2 on 08M2, physical pin #5) to RX pin on Arduino

Code for PICAXE is here:

'd. bodnar 8-8-14
'intermittently working to Arduino
'using program "Speedometer_read_display_V2_2"
'push button to send one line of data


#NO_DATA 'speeds up programming
'#Picaxe 08M2 'identify the chip
SETFREQ m32 'speed it up to 32 MHz
SYMBOL Loopie = b2 'label variable b2 as Loopie
SYMBOL Dlay = w10

sertxd (13,10,"Xmit to Arduino 8x8 LCD - d. bodnar",13,10)
'pwmout C.2,150,150
Start:
if pinc.3=1 then start
w0=w0+1
SEROUT c.2,t9600_32,(" PICAXE test ",#w0," ",10,13)
sertxd (" PICAXE test ",#w0,13,10)

pause 2500
goto start:



Connect PIC output pin (pin gpio,2 on 12F683, physical pin #7) to RX pin on Arduino

Code for PIC is here:

'd. bodnar 8-9-14
' successfully sends serial stream to Arduino
'PIC 12F683
Include "modedefs.bas"
ansel = 0
cmcon0 = 7
Serial_out var gpio.0 'pin 7
LED var gpio.2 'pin 5
b1 var byte
b1=0
start:
b1=b1+1
Serout serial_out,t9600,["Test ",#b1," "]
pause 10000
toggle LED
goto start


Code for Arduino is here: (note that you MUST disconnect from PICAXE serial to program Arduino)
(code based on forum information found here: http://forum.arduino.cc/index.php?topic=253678.0 - thanks!)

#include <MaxMatrix.h>
#include <avr/pgmspace.h>

PROGMEM prog_uchar CH[] = {
  3, 8, B00000000, B00000000, B00000000, B00000000, B00000000, // space
  1, 8, B01011111, B00000000, B00000000, B00000000, B00000000, // !
  3, 8, B00000011, B00000000, B00000011, B00000000, B00000000, // "
  5, 8, B00010100, B00111110, B00010100, B00111110, B00010100, // #
  4, 8, B00100100, B01101010, B00101011, B00010010, B00000000, // $
  5, 8, B01100011, B00010011, B00001000, B01100100, B01100011, // %
  5, 8, B00110110, B01001001, B01010110, B00100000, B01010000, // &
  1, 8, B00000011, B00000000, B00000000, B00000000, B00000000, // '
  3, 8, B00011100, B00100010, B01000001, B00000000, B00000000, // (
  3, 8, B01000001, B00100010, B00011100, B00000000, B00000000, // )
  5, 8, B00101000, B00011000, B00001110, B00011000, B00101000, // *
  5, 8, B00001000, B00001000, B00111110, B00001000, B00001000, // +
  2, 8, B10110000, B01110000, B00000000, B00000000, B00000000, // ,
  4, 8, B00001000, B00001000, B00001000, B00001000, B00000000, // -
  2, 8, B01100000, B01100000, B00000000, B00000000, B00000000, // .
  4, 8, B01100000, B00011000, B00000110, B00000001, B00000000, // /
  4, 8, B00111110, B01000001, B01000001, B00111110, B00000000, // 0
  3, 8, B01000010, B01111111, B01000000, B00000000, B00000000, // 1
  4, 8, B01100010, B01010001, B01001001, B01000110, B00000000, // 2
  4, 8, B00100010, B01000001, B01001001, B00110110, B00000000, // 3
  4, 8, B00011000, B00010100, B00010010, B01111111, B00000000, // 4
  4, 8, B00100111, B01000101, B01000101, B00111001, B00000000, // 5
  4, 8, B00111110, B01001001, B01001001, B00110000, B00000000, // 6
  4, 8, B01100001, B00010001, B00001001, B00000111, B00000000, // 7
  4, 8, B00110110, B01001001, B01001001, B00110110, B00000000, // 8
  4, 8, B00000110, B01001001, B01001001, B00111110, B00000000, // 9
  2, 8, B01010000, B00000000, B00000000, B00000000, B00000000, // :
  2, 8, B10000000, B01010000, B00000000, B00000000, B00000000, // ;
  3, 8, B00010000, B00101000, B01000100, B00000000, B00000000, // <
  3, 8, B00010100, B00010100, B00010100, B00000000, B00000000, // =
  3, 8, B01000100, B00101000, B00010000, B00000000, B00000000, // >
  4, 8, B00000010, B01011001, B00001001, B00000110, B00000000, // ?
  5, 8, B00111110, B01001001, B01010101, B01011101, B00001110, // @
  4, 8, B01111110, B00010001, B00010001, B01111110, B00000000, // A
  4, 8, B01111111, B01001001, B01001001, B00110110, B00000000, // B
  4, 8, B00111110, B01000001, B01000001, B00100010, B00000000, // C
  4, 8, B01111111, B01000001, B01000001, B00111110, B00000000, // D
  4, 8, B01111111, B01001001, B01001001, B01000001, B00000000, // E
  4, 8, B01111111, B00001001, B00001001, B00000001, B00000000, // F
  4, 8, B00111110, B01000001, B01001001, B01111010, B00000000, // G
  4, 8, B01111111, B00001000, B00001000, B01111111, B00000000, // H
  3, 8, B01000001, B01111111, B01000001, B00000000, B00000000, // I
  4, 8, B00110000, B01000000, B01000001, B00111111, B00000000, // J
  4, 8, B01111111, B00001000, B00010100, B01100011, B00000000, // K
  4, 8, B01111111, B01000000, B01000000, B01000000, B00000000, // L
  5, 8, B01111111, B00000010, B00001100, B00000010, B01111111, // M
  5, 8, B01111111, B00000100, B00001000, B00010000, B01111111, // N
  4, 8, B00111110, B01000001, B01000001, B00111110, B00000000, // O
  4, 8, B01111111, B00001001, B00001001, B00000110, B00000000, // P
  4, 8, B00111110, B01000001, B01000001, B10111110, B00000000, // Q
  4, 8, B01111111, B00001001, B00001001, B01110110, B00000000, // R
  4, 8, B01000110, B01001001, B01001001, B00110010, B00000000, // S
  5, 8, B00000001, B00000001, B01111111, B00000001, B00000001, // T
  4, 8, B00111111, B01000000, B01000000, B00111111, B00000000, // U
  5, 8, B00001111, B00110000, B01000000, B00110000, B00001111, // V
  5, 8, B00111111, B01000000, B00111000, B01000000, B00111111, // W
  5, 8, B01100011, B00010100, B00001000, B00010100, B01100011, // X
  5, 8, B00000111, B00001000, B01110000, B00001000, B00000111, // Y
  4, 8, B01100001, B01010001, B01001001, B01000111, B00000000, // Z
  2, 8, B01111111, B01000001, B00000000, B00000000, B00000000, // [
  4, 8, B00000001, B00000110, B00011000, B01100000, B00000000, // \ backslash
  2, 8, B01000001, B01111111, B00000000, B00000000, B00000000, // ]
  3, 8, B00000010, B00000001, B00000010, B00000000, B00000000, // hat
  4, 8, B01000000, B01000000, B01000000, B01000000, B00000000, // _
  2, 8, B00000001, B00000010, B00000000, B00000000, B00000000, // `
  4, 8, B00100000, B01010100, B01010100, B01111000, B00000000, // a
  4, 8, B01111111, B01000100, B01000100, B00111000, B00000000, // b
  4, 8, B00111000, B01000100, B01000100, B00101000, B00000000, // c
  4, 8, B00111000, B01000100, B01000100, B01111111, B00000000, // d
  4, 8, B00111000, B01010100, B01010100, B00011000, B00000000, // e
  3, 8, B00000100, B01111110, B00000101, B00000000, B00000000, // f
  4, 8, B10011000, B10100100, B10100100, B01111000, B00000000, // g
  4, 8, B01111111, B00000100, B00000100, B01111000, B00000000, // h
  3, 8, B01000100, B01111101, B01000000, B00000000, B00000000, // i
  4, 8, B01000000, B10000000, B10000100, B01111101, B00000000, // j
  4, 8, B01111111, B00010000, B00101000, B01000100, B00000000, // k
  3, 8, B01000001, B01111111, B01000000, B00000000, B00000000, // l
  5, 8, B01111100, B00000100, B01111100, B00000100, B01111000, // m
  4, 8, B01111100, B00000100, B00000100, B01111000, B00000000, // n
  4, 8, B00111000, B01000100, B01000100, B00111000, B00000000, // o
  4, 8, B11111100, B00100100, B00100100, B00011000, B00000000, // p
  4, 8, B00011000, B00100100, B00100100, B11111100, B00000000, // q
  4, 8, B01111100, B00001000, B00000100, B00000100, B00000000, // r
  4, 8, B01001000, B01010100, B01010100, B00100100, B00000000, // s
  3, 8, B00000100, B00111111, B01000100, B00000000, B00000000, // t
  4, 8, B00111100, B01000000, B01000000, B01111100, B00000000, // u
  5, 8, B00011100, B00100000, B01000000, B00100000, B00011100, // v
  5, 8, B00111100, B01000000, B00111100, B01000000, B00111100, // w
  5, 8, B01000100, B00101000, B00010000, B00101000, B01000100, // x
  4, 8, B10011100, B10100000, B10100000, B01111100, B00000000, // y
  3, 8, B01100100, B01010100, B01001100, B00000000, B00000000, // z
  3, 8, B00001000, B00110110, B01000001, B00000000, B00000000, // {
  1, 8, B01111111, B00000000, B00000000, B00000000, B00000000, // |
  3, 8, B01000001, B00110110, B00001000, B00000000, B00000000, // }
  4, 8, B00001000, B00000100, B00001000, B00000100, B00000000, // ~
};

int data = 8;    // DIN pin of MAX7219 module
int load = 9;    // CS pin of MAX7219 module
int clock = 10;  // CLK pin of MAX7219 module

int maxInUse = 3;    //change this variable to set how many MAX7219's you'll use

MaxMatrix m(data, load, clock, maxInUse); // define module

byte buffer[10];

void setup(){
  m.init(); // module initialize
  m.setIntensity(10); // dot matix intensity 0-15
  Serial.begin(9600); // serial communication initialize
}

void loop(){

  while (Serial.available() > 0){
    byte c = Serial.read();
    Serial.println(c, DEC);
    printCharWithShift(c, 100);
  }
  /*
  delay(100);
  m.shiftLeft(false, true);
*/

}

void printCharWithShift(char c, int shift_speed){
  if (c < 32) return;
  c -= 32;
  memcpy_P(buffer, CH + 7*c, 7);
  m.writeSprite(32, 0, buffer);
  m.setColumn(32 + buffer[0], 0);

  for (int i=0; i<buffer[0]+1; i++)
  {
    delay(shift_speed);
    m.shiftLeft(false, false);
  }
}

void printStringWithShift(char* s, int shift_speed){
  while (*s != 0){
    printCharWithShift(*s, shift_speed);
    s++;

  }

}
