  d. bodnar  revised 9-06-2016  V3.12
  Steve's mod


*/
#include "Arduino.h"
#include <SoftwareSerial.h>
#include <Nextion.h>
#include<EEPROM.h>

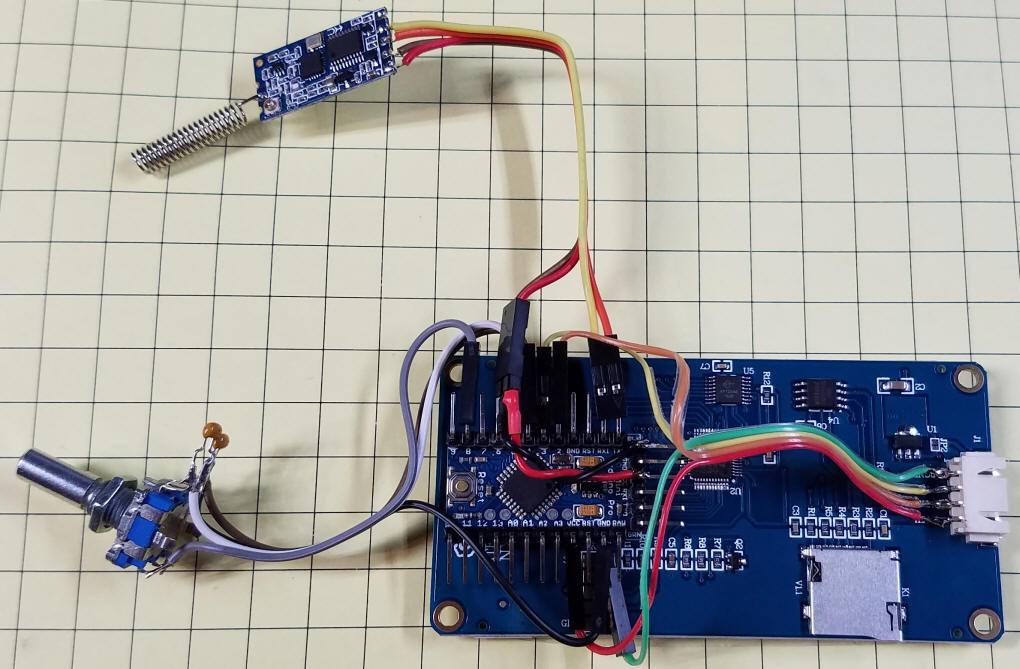

SoftwareSerial nextion(4, 5);// Nextion TX to pin 4 and RX to pin 5 of Arduino

Nextion myNextion(nextion, 9600); //create a Nextion object named myNextion using the nextion serial port @ 9600bps
String message;
int debug = 1; // set to 1 to show debug info on serial port - may cause issues with DCC++ depending on what is sent
int ActiveAddress = 0; // make address1 active
int counter = 0;
byte Key;
char key ;
unsigned long currentTime;
unsigned long lastTime;
unsigned long DCCtime;
unsigned long DCCcurrentTime;
const int buttonPin = 8;     // the number of the pushbutton pin on encoder
const int ledPin =  13;      // the number of the LED pin
boolean encA;
boolean encB;
boolean lastA = false;
unsigned long number = 0;
int lowest = 0;
unsigned long highest = 120;//126;
long changeamnt = 1;
int jumpamnt = 10;
int scaled = 0;
int encoderChange = 0; // flag to show encoder changed
byte Fx = 0;
int maxLocos = 3;// number of loco addresses
int LocoDirection[3] = {1, 1, 1};
int LocoSpeed[3] = {0, 0, 0};
byte LocoFN0to4[3] = {128, 128, 128};
byte LocoFN5to8[3] = {176, 176, 176};
byte Locofn9to12[4];// 9-12 not yet implemented
int xxxxx = 0;
int old_speed = 0;
int ZeroSpeedFlag = 0;
int z = 0;
int powerTemp = 0;
int i = 0;
char VersionNum[] = "3.12";
int DCCflag = 0;
boolean ledPin_state;
unsigned long previousMillis = 0;        // will store last time LED was updated
unsigned long currentMillis = millis();
const long interval = 300;
int saveAddress = 0;
int LocoAddress[4] = {000, 1830, 3, 456};
int FNbutton = 0;
volatile byte aFlag = 0;
volatile byte bFlag = 0;
volatile byte encoderPos = 0;
volatile byte oldEncPos = 0;
volatile byte reading = 0;
int old_pos = encoderPos;
int dir = 0; // direction
int buttonState = 0;
unsigned long interruptTime;
int FwdRev = 0; // 0 for backwards, 1 for forwards
static int pinA = 2; // Our first hardware interrupt pin is digital pin 2
static int pinB = 3; // Our second hardware interrupt pin is digital pin 3
int directionFlag = 0;

void setup() {
  pinMode(ledPin, OUTPUT);
  pinMode(pinA, INPUT_PULLUP); // set pinA as an input, pulled HIGH to the logic voltage (5V or 3.3V for most cases)
  pinMode(pinB, INPUT_PULLUP); // set pinB as an input, pulled HIGH to the logic voltage (5V or 3.3V for most cases)
  pinMode(buttonPin, INPUT_PULLUP);
  attachInterrupt(0, PinA, RISING); //interrupt on PinA, rising edge signal & executing the "PinA" Interrupt Service Routine (below)
  attachInterrupt(1, PinB, RISING); // same for B
  pinMode(ledPin, OUTPUT);
  Serial.begin (115200);
  Serial.print("9-05-2016  version ");
  for (int i = 0; i < 4; i++) {
    Serial.print(VersionNum[i]);
  }
  Serial.print("<0>");// power off to DCC++ unit
  digitalWrite(ledPin, HIGH);           // Turn the LED on.
  ledPin_state = digitalRead(ledPin);   // Store initial LED state. HIGH when LED is on.
  myNextion.init(); // send the initialization commands for Page 0
  currentTime = millis();
  lastTime = currentTime;
  myNextion.sendCommand("page 0" );
  myNextion.setComponentText("Version", "3.12");
  Serial.println("Version 3.12");
  delay(2000); //show title screen for minimum of 2 seconds
  myNextion.sendCommand("page 2" );
  dir = 1; //forward
  //myNextion.setComponentText("forward", ">>>>");//Now done as default on display
  //myNextion.setComponentText("reverse", "  ");
  getAddresses(); // read from EEPROM
  //myNextion.sendCommand("n0.font=1");//Now done as default on display
  //myNextion.sendCommand("n0.bco=65504");// change background color yellow
  //myNextion.sendCommand("n1.font=0");
  //myNextion.sendCommand("n1.bco=65535");// change background color white
  //myNextion.sendCommand("n2.font=0");
  //myNextion.sendCommand("n2.bco=65535");// change background color white
  updateDCCaddresses();
  makeFWD();
}  // END SETUP

void loop() {
  encoderInterrupt(); // check rotary encoder
  DCCcurrentTime = millis(); //send DCC every 30000 ms
  if (DCCcurrentTime - DCCtime >= 30000 | DCCflag == 1) {
    DCCflag = 0;
    DCCtime = DCCcurrentTime;
    doDCC();
  }
  checkButton();  // check for change in direction
  getActiveAddress();  // check for DCC address change
}   // *** END LOOP ***

void encoderInterrupt() {
  currentTime = millis();
  if (oldEncPos != encoderPos) {
    if ((currentTime - interruptTime) >= 100) {
    }
    else {  // if turned rapidly increment another 4 (total of 5 per turn)
      if (FwdRev == 0) {
        if (encoderPos >= 4)     {
          encoderPos = encoderPos - 4;
        }
      }
      else {
        if (encoderPos <= 115) {
          encoderPos = encoderPos + 4;
        }
      }
    }
    interruptTime = millis();
    int x = old_pos - encoderPos;
    //Serial.print(encoderPos);
    //Serial.print("\t");
    //Serial.println(FwdRev);
    oldEncPos = encoderPos;
    scaled = encoderPos * 100;
    scaled = scaled / highest;
    myNextion.setComponentValue("throttle", scaled);
    myNextion.setComponentValue("throttleNum", encoderPos);
    LocoSpeed[ActiveAddress] = encoderPos;
    doDCC();
  }
}

void checkButton() {  // Checks button on encoder to change direction
  buttonState = digitalRead(buttonPin);
  directionFlag = 0;
  currentMillis = millis();
  if (buttonState == LOW) {
    do {
      if (millis() - currentMillis > 200) {
        myNextion.setComponentValue("throttle", (millis() - currentMillis) / 10);
      }
      buttonState = digitalRead(buttonPin);
      if (millis() - currentMillis >= 1000) {
  //      Serial.println("MORE THAN 1000 MILLIS");
  //      Serial.println("button held");
        LocoSpeed[ActiveAddress] = 0;
        encoderPos = 0;
        myNextion.setComponentValue("throttle", 0);
        myNextion.setComponentValue("throttleNum", 0);
        directionFlag = 1;
      }
    }
    while (buttonState == LOW);
    if (directionFlag == 0) {
      directionFlag = 0;
      dir = !dir;
      if (dir) {
        digitalWrite(ledPin, HIGH);
        makeFWD();
      }
      else {
        digitalWrite(ledPin, LOW);
        makeBKW();
      }
      currentMillis = millis();
      LocoDirection[ActiveAddress] = dir;
      doDCC();
    }
  }
}

void getActiveAddress() {
  message = myNextion.listen(); //check for message
  if (message != "") {
    char mostSignificantDigit = message.charAt(5);// for function numbers
    String myString;
    myString = mostSignificantDigit;
    FNbutton = myString.toInt();
    FNbutton = FNbutton - 1;
    if (FNbutton == -1) {
      if (myString == "a") FNbutton = 9;
      if (myString == "b") FNbutton = 0;
    }
    if (FNbutton >= 0 && FNbutton <= 9) doFunction();
    if (message.startsWith("65 2 e")) { // move to page 1
      getLocoAddress();  // get new DCC address #
    }

    if (message.startsWith("AllStop")) { // DCC1 button page 2
      Serial.println("STOP STOP  STOP"); //Selected DCC address #1 on page 2
      Serial.print("<0>");// power off to DCC++ unit

      LocoSpeed[0] = 0;
      LocoSpeed[1] = 0;
      LocoSpeed[2] = 0;
      encoderPos = 0;
      myNextion.setComponentValue("throttle", 0);
      myNextion.setComponentValue("throttleNum", 0);
      dir = 1; //forward
      makeFWD();
    }
    if (message.startsWith("l1")) { // DCC1 button page 2
      Serial.println("one"); //Selected DCC address #1 on page 2
      encoderPos = LocoSpeed[0];
      updateDCC1();
    }
    if (message.startsWith("l2")) { // DCC1 button page 2
      Serial.println("two");//Selected DCC address #2 on page 2
      encoderPos = LocoSpeed[1];
      updateDCC2();
    }
    if (message.startsWith("l3")) { // DCC1 button page 2
      Serial.println("three");//Selected DCC address #3 on page 2
      encoderPos = LocoSpeed[2];
      updateDCC3();
    }
  }
}

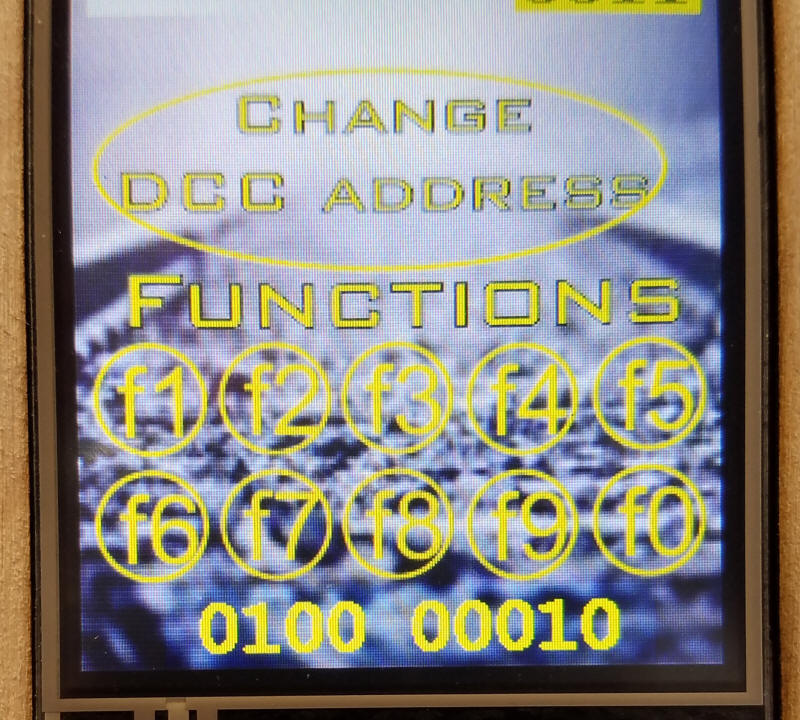

//START DO FUNCTION BUTTONS
int doFunction() {
  key = FNbutton - 1; // convert from ascii value
  if (key <= 4) {
    if (bitRead(LocoFN0to4[ActiveAddress], key) == 0 ) {
      bitWrite(LocoFN0to4[ActiveAddress], key, 1);
    }
    else {
      //if (bitRead(LocoFN0to4[ActiveAddress], key) == 1 ) {
      bitWrite(LocoFN0to4[ActiveAddress], key, 0);
      //}
    }
    doDCCfunction04();
  }
  if (key >= 5 && key <= 8) {
    key = key - 5;
    if (bitRead(LocoFN5to8[ActiveAddress], key) == 0 ) {
      bitWrite(LocoFN5to8[ActiveAddress], key, 1);
    }
    else {
      //if (bitRead(LocoFN5to8[ActiveAddress], key) == 1 ) {
      bitWrite(LocoFN5to8[ActiveAddress], key, 0);
      //}
    }
    doDCCfunction58();
  }
  if (key == -1)
  {
    key = 0;
    LocoFN0to4[ActiveAddress] = B10000000; //clear variables for which functions are set
    LocoFN5to8[ActiveAddress] = B10110000;
    doDCCfunction04();
    doDCCfunction58();
    key = 0;
  }
  key = 0;
  String temp = "0000" + String(LocoFN0to4[ActiveAddress], BIN);  // pad with leading zeros
  int tlen = temp.length() - 5;
  Serial.println("");
  Serial.println(temp.substring(tlen));
  String FN1 = temp.substring(tlen);
  temp = "000" + String(LocoFN5to8[ActiveAddress], BIN);
  tlen = temp.length() - 4;
  FN1 = temp.substring(tlen) + " " + FN1;
  myNextion.setComponentText("FunctionBinary", FN1);
}//END DO FUNCTION BUTTONS

void doDCC() {
  Serial.print("<1>");
  Serial.print("<t1 ");
  Serial.print(LocoAddress[ActiveAddress] );//locoID);
  Serial.print(" ");
  Serial.print(LocoSpeed[ActiveAddress] );
  Serial.print(" ");
  Serial.print(LocoDirection[ActiveAddress] );
  Serial.println(">");
  number = LocoSpeed[ActiveAddress];
  scaled = number * 100;
  scaled = scaled / highest;
  myNextion.setComponentValue("throttle", scaled);
  myNextion.setComponentValue("throttleNum", number);
  if (dir) {
    makeFWD();
  }
  else {
    makeBKW();
  }
}

void doDCCfunction04() {
  Serial.write("<f ");
  Serial.print(LocoAddress[ActiveAddress] );
  Serial.print(" ");
  //int fx = LocoFN0to4[ActiveAddress] + 128;
  Serial.print(LocoFN0to4[ActiveAddress]);
  Serial.print(" >");
}
void doDCCfunction58() {
  Serial.write("<f ");
  Serial.print(LocoAddress[ActiveAddress] );
  Serial.print(" ");
  //int fx = LocoFN5to8[ActiveAddress] + 176;
  Serial.print(LocoFN5to8[ActiveAddress]);
  Serial.print(" >");
}

void getLocoAddress() {// get new DCC address # on Nextion page #1
  myNextion.sendCommand("page 1" );
  myNextion.setComponentValue("AddrNew", ActiveAddress + 1);
  myNextion.setComponentValue("DCCnew", 0);
  saveAddress =   LocoAddress[ActiveAddress];
  int total = 0;
  counter = 0;
  do {
    do {
      message = myNextion.listen(); //check for message
      if (message != "") {
      }
    }
    while (message == "");
    getNumber();
    if (key == 98 ) { //"done" button hit - less than 4 digits
      break;// exit routine if # button pressed - ABORT new address
    }
    if (key == 99) {
      break;
    }
    counter++;
    int number =  key;
    total = total * 10 + number;
    if (total == 0) {   // print multiple zeros for leading zero number
      for (int tempx = 1; tempx <= counter; tempx++) {
      }
    }
    myNextion.setComponentValue("DCCnew", total);
    myNextion.setComponentValue("j0", total);
  }
  while (counter <= 3); //  collect exactly 4 digits
  LocoAddress[ActiveAddress] = total;
  total = 0;
  counter = 0;
  myNextion.sendCommand("page 2" );
  if (key == 99) {
    LocoAddress[ActiveAddress] = saveAddress;
  }
  switch (ActiveAddress) {
    case 0:
      updateDCC1();
      break;
    case 1:
      updateDCC2();
      break;
    default:
      updateDCC3();
  }
  saveAddresses();
}

void getAddresses() {  // from EEPROM
  int xxx = 0;
  for (int xyz = 0; xyz <= maxLocos - 1; xyz++) {
    LocoAddress[xyz] = EEPROM.read(xyz * 2) * 256;
    LocoAddress[xyz] = LocoAddress[xyz] + EEPROM.read(xyz * 2 + 1);
    if (LocoAddress[xyz] >= 10000) LocoAddress[xyz] = 3;
  }
  maxLocos = EEPROM.read(20);
  if (maxLocos >= 4) maxLocos = 4;
}


void saveAddresses() { // TO EEPROM
  int xxx = 0;
  for (int xyz = 0; xyz <= maxLocos ; xyz++) {
    xxx = LocoAddress[xyz] / 256;
    EEPROM.write(xyz * 2, xxx);
    xxx = LocoAddress[xyz] - (xxx * 256);
    EEPROM.write(xyz * 2 + 1, xxx);
  }
  EEPROM.write(20, maxLocos);
}

// FROM NEXTION CODE
void getNumber() {   // note that the 2nd digit (after the 65) was changed from page 0 to page 1
  if (message.startsWith("65 1 a")) {
    key = 0;
  }
  if (message.startsWith("65 1 1")) {
    key = 1;
  }
  if (message.startsWith("65 1 2")) {
    key = 2;
  }
  if (message.startsWith("65 1 3")) {
    key = 3;
  }
  if (message.startsWith("65 1 4")) {
    key = 4;
  }
  if (message.startsWith("65 1 5")) {
    key = 5;
  }
  if (message.startsWith("65 1 6")) {
    //Serial.println("six");
    key = 6;
  }
  if (message.startsWith("65 1 7")) {
    key = 7;
  }
  if (message.startsWith("65 1 8")) {
    key = 8;
  }
  if (message.startsWith("65 1 9")) {
    key = 9;
  }
  if (message.startsWith("65 1 b")) {
    key = 98;
  }
  if (message.startsWith("65 1 c")) {
    key = 99;
  }
}

void makeFWD() {
  myNextion.setComponentText("forward", ">>>>");
  myNextion.setComponentText("reverse", "  ");
  myNextion.setComponentValue("throttle", scaled);
  myNextion.setComponentValue("throttleNum", number);
}

void makeBKW() {
  myNextion.setComponentText("forward", "  ");
  myNextion.setComponentText("reverse", "<<<<");
  myNextion.setComponentValue("throttle", scaled);
  myNextion.setComponentValue("throttleNum", number);
}

void updateDCCaddresses() {
  String stringOne =  String(LocoAddress[0]);
  String stringTwo =  String(LocoAddress[1]);
  String stringThree =  String(LocoAddress[2]);
  myNextion.setComponentText("bt0", stringOne);//myNextion.setComponentValue("n0", LocoAddress[0]); Hope this converts
  myNextion.setComponentText("bt1", stringTwo);//myNextion.setComponentValue("n1", LocoAddress[1]);
  myNextion.setComponentText("bt2", stringThree);//myNextion.setComponentValue("n2", LocoAddress[2]);
  DCCflag = 1;
}

void updateDCC1() {
  ActiveAddress = 0;
  number =  LocoSpeed[ActiveAddress];
  dir = LocoDirection[ActiveAddress];
  //myNextion.sendCommand("n0.font=1");//Done on display
  //myNextion.sendCommand("n0.bco=65504");// change background color yellow
  //myNextion.sendCommand("n1.font=0");
  //myNextion.sendCommand("n1.bco=65535");// change background color white
  //myNextion.sendCommand("n2.font=0");
  //myNextion.sendCommand("n2.bco=65535");// change background color white
  updateDCCaddresses();
}

void updateDCC2() {
  ActiveAddress = 1;
  number =  LocoSpeed[ActiveAddress];
  dir = LocoDirection[ActiveAddress];
  //myNextion.sendCommand("n1.font=1");//Done on display       // myNextion.setComponentValue("n1", LocoAddress[2]);
  //myNextion.sendCommand("n1.bco=65504");// change background color yellow
  //myNextion.sendCommand("n0.font=0");
  //myNextion.sendCommand("n0.bco=65535");// change background color white
  //myNextion.sendCommand("n2.font=0");
  //myNextion.sendCommand("n2.bco=65535");// change background color white
  updateDCCaddresses();
}

void updateDCC3() {
  ActiveAddress = 2;
  number =  LocoSpeed[ActiveAddress];
  dir = LocoDirection[ActiveAddress];
  //myNextion.sendCommand("n2.font=1");//Done on display
  //myNextion.sendCommand("n2.bco=65504");// change background color yellow
  //myNextion.sendCommand("n1.font=0");
  //myNextion.sendCommand("n1.bco=65535");// change background color white
  //myNextion.sendCommand("n0.font=0");
  //myNextion.sendCommand("n0.bco=65535");// change background color white
  updateDCCaddresses();
}

void PinA() {
  cli(); //stop interrupts happening before we read pin values
  reading = PIND & 0xC; // read all eight pin values then strip away all but pinA and pinB's values
  if (reading == B00001100 && aFlag) { //check that we have both pins at detent (HIGH) and that we are expecting detent on this pin's rising edge
    if (encoderPos >= 1) {
      encoderPos --;
    }//decrement the encoder's position count
    FwdRev = 0;
    bFlag = 0; //reset flags for the next turn
    aFlag = 0; //reset flags for the next turn
  }
  else if (reading == B00000100) bFlag = 1; //signal that we're expecting pinB to signal the transition to detent from free rotation
  sei(); //restart interrupts
}

void PinB() {
  cli(); //stop interrupts happening before we read pin values
  reading = PIND & 0xC; //read all eight pin values then strip away all but pinA and pinB's values
  if (reading == B00001100 && bFlag) { //check that we have both pins at detent (HIGH) and that we are expecting detent on this pin's rising edge
    if (encoderPos <= 119) {
      encoderPos ++;
    } //increment the encoder's position count
    FwdRev = 1;
    bFlag = 0; //reset flags for the next turn
    aFlag = 0; //reset flags for the next turn
  }
  else if (reading == B00001000) aFlag = 1; //signal that we're expecting pinA to signal the transition to detent from free rotation
  sei(); //restart interrupts
}

void loop() {
myNextion.sendCommand("page 1" );
Serial.println("Id=1 ");
delay (1000);
myNextion.sendCommand("page 0" );
Serial.println("Id=0 ");
delay (1000);
}
